IC socket 08LT13A18060
- Suitable Packages: supports QFN8 packages
- Socket Pitch: 1.27mm pitch
- Number Of Pins: 8 pins
- Socket Design: open-top
- Durability: very durable burn-in socket
- Manufacturer: Plastronics
- RoHS: RoHS Compliant
- Mounting Type: through hole, solder-mounted on the PCB
- Country Of Origin: USA
- Stock Availability: Large quantity in stock
- Price: Send inquiry
Description:

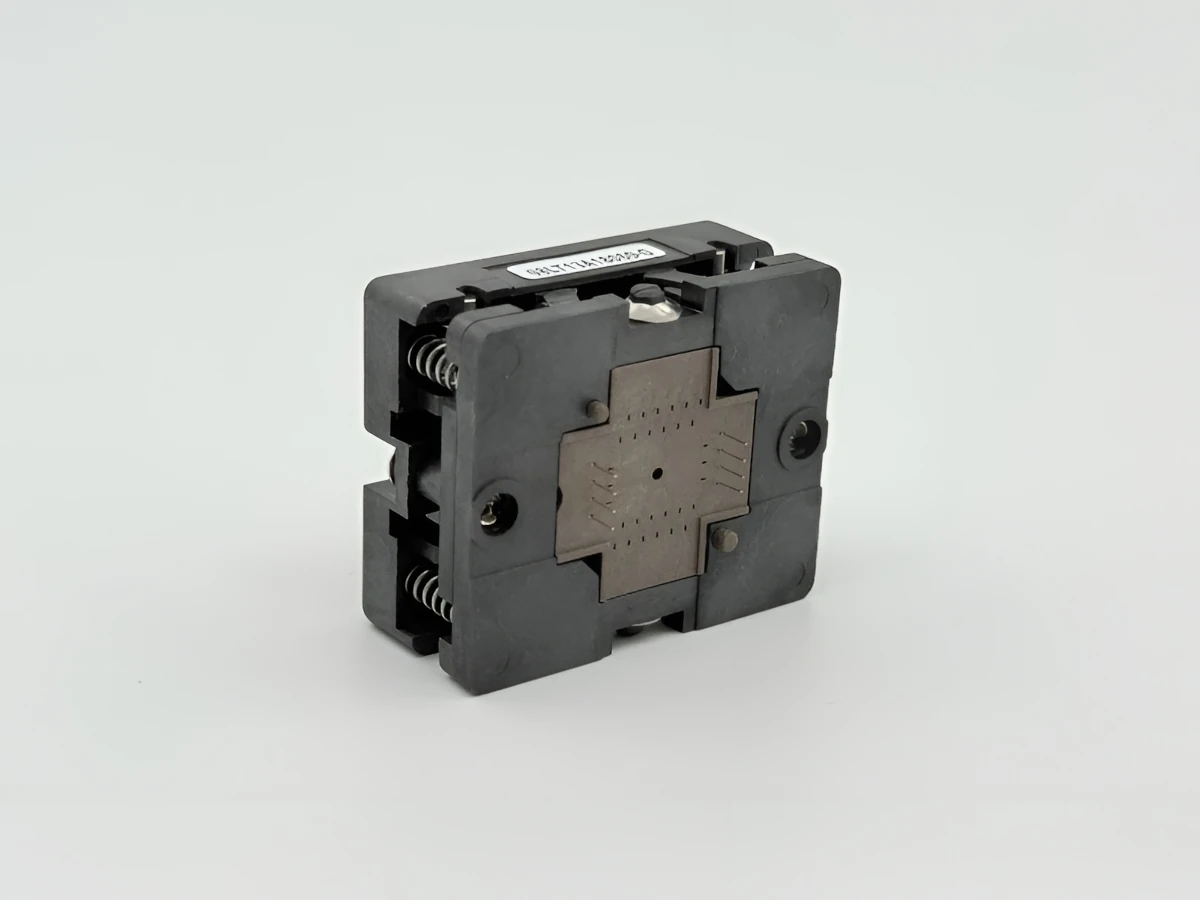

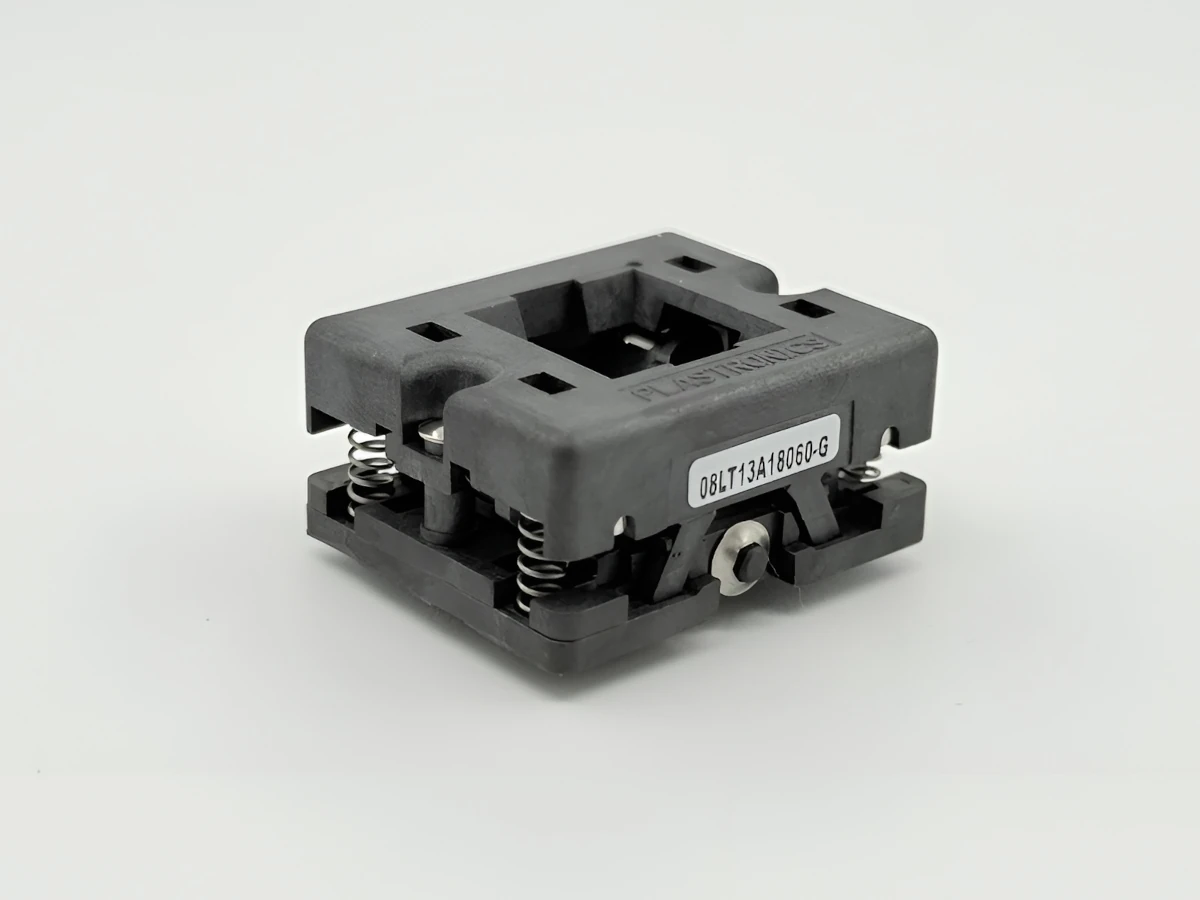

08LT13A18060 is IC Test & Burn-in socket manufactured by Plastronics, dedicated for 8-pin QFN package with 1.27mm pitch.This is suitable solution for autoloading equipment / equipment operated by robotic handlers.
Socket drawing available upon request.
| IC dimensions | socket dimensions | pin length | ||
| A x B | F | G x H x I | J | |
| 8.00 x 6.00 | 0.75 | 32.13 x 26.67 x 16.11 | 2.29 | |
| ||||
Possible alternatives:
Test sockets with similar properties are listed below (1):
AOP2-SON-8-1.27-6*8-SMD (Autmwell)
Please note that the test sockets listed as possible alternatives to the Plastronics test socket 08LT13A18060 are similar in the way they accept IC packages with the same dimensions. However, they may differ in tolerances, operating methods, mounting to the PCB, PCB footprint, etc. Always refer to the technical datasheet to ensure compatibility with your application
