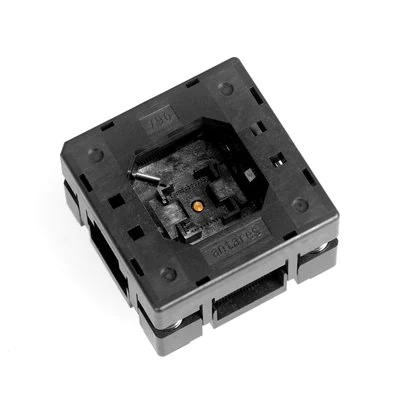

IC socket 280-5205-01
- Suitable Packages: supports QFN80 packages
- Socket Pitch: 0.5mm pitch
- Number Of Pins: 80 pins
- Socket Design: open-top
- Durability: very durable burn-in socket, at least 10000 guaranteed actuations
- Manufacturer: 3M
- RoHS: RoHS Compliant
- Mounting Type: through hole, solder-mounted on the PCB
- Country Of Origin: Japan
- Stock Availability: In stock for quick delivery
- Price: Send inquiry
Description:
280-5205-01 is IC Test & Burn-in socket manufactured by 3M, dedicated for 80-pin QFN package with 0.5mm pitch.This is suitable solution for autoloading equipment / equipment operated by robotic handlers.
Socket drawing available upon request.
| IC dimensions | socket dimensions | pin length | ||
| A x B | F | G x H x I | J | |
| 12.00 x 12.00 | 0.90 | 30.00 x 30.00 x 17.00 | 3.00 | |
| ||||
