IC socket 56QN50AW28080
- Suitable Packages: supports QFN56 packages
- Socket Pitch: 0.5mm pitch
- Number Of Pins: 56 pins
- Socket Design: clam-shell
- Durability: very durable burn-in socket, at least 5000 guaranteed actuations
- Manufacturer: Plastronics
- RoHS: RoHS Compliant
- Mounting Type: through hole, solder-mounted on the PCB
- Country Of Origin: USA
- Stock Availability: Out of stock, please inquire for availability
- Price: Send inquiry
Description:
56QN50AW28080 is IC Test & Burn-in socket manufactured by Plastronics, dedicated for 56-pin QFN package with 0.5mm pitch.Socket drawing available upon request.

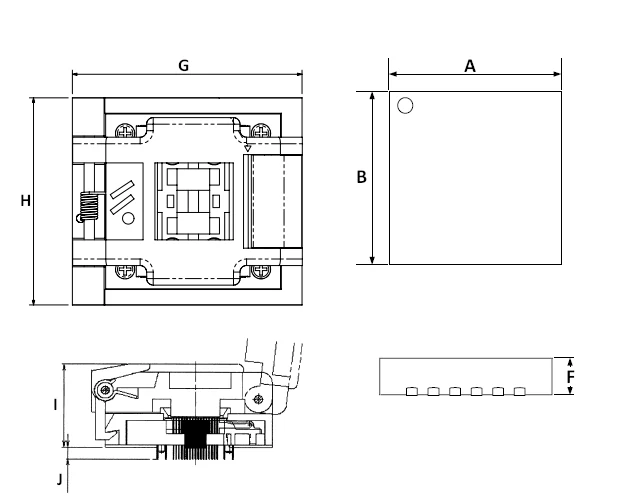

| IC dimensions | socket dimensions | pin length | ||
| A x B | F | G x H x I | J | |
| 8.00 x 8.00 | - | 27.43 x 20.32 x 14.73 | - | |
| ||||
Possible alternatives:
Test sockets with similar properties are listed below (17):
56QN50S18080 (Plastronics)
56QN50HS18080 (Plastronics)
56QN50H18080 (Plastronics)
56QN50D18080 (Plastronics)
56QN50AT18080 (Plastronics)
56LQ50TS18080 (Plastronics)
56LQ50H18080 (Plastronics)
56LQ50S18080 (Plastronics)
QFN56(8*8)-0.5-CP01GT (KZT)
QFN-56B-0.5-01 (Enplas)
QFN-56BT-0.5-01 (Enplas)
790-42056-101T (Sensata)
790-42056-101G (Sensata)
776P4056-101 (Sensata)
776P4056-102 (Sensata)
QFN56(8*8)-0.5-TP01GT (KZT)
IC610-0564-010-G (Yamaichi)
Please note that the test sockets listed as possible alternatives to the Plastronics test socket 56QN50AW28080 are similar in the way they accept IC packages with the same dimensions. However, they may differ in tolerances, operating methods, mounting to the PCB, PCB footprint, etc. Always refer to the technical datasheet to ensure compatibility with your application
