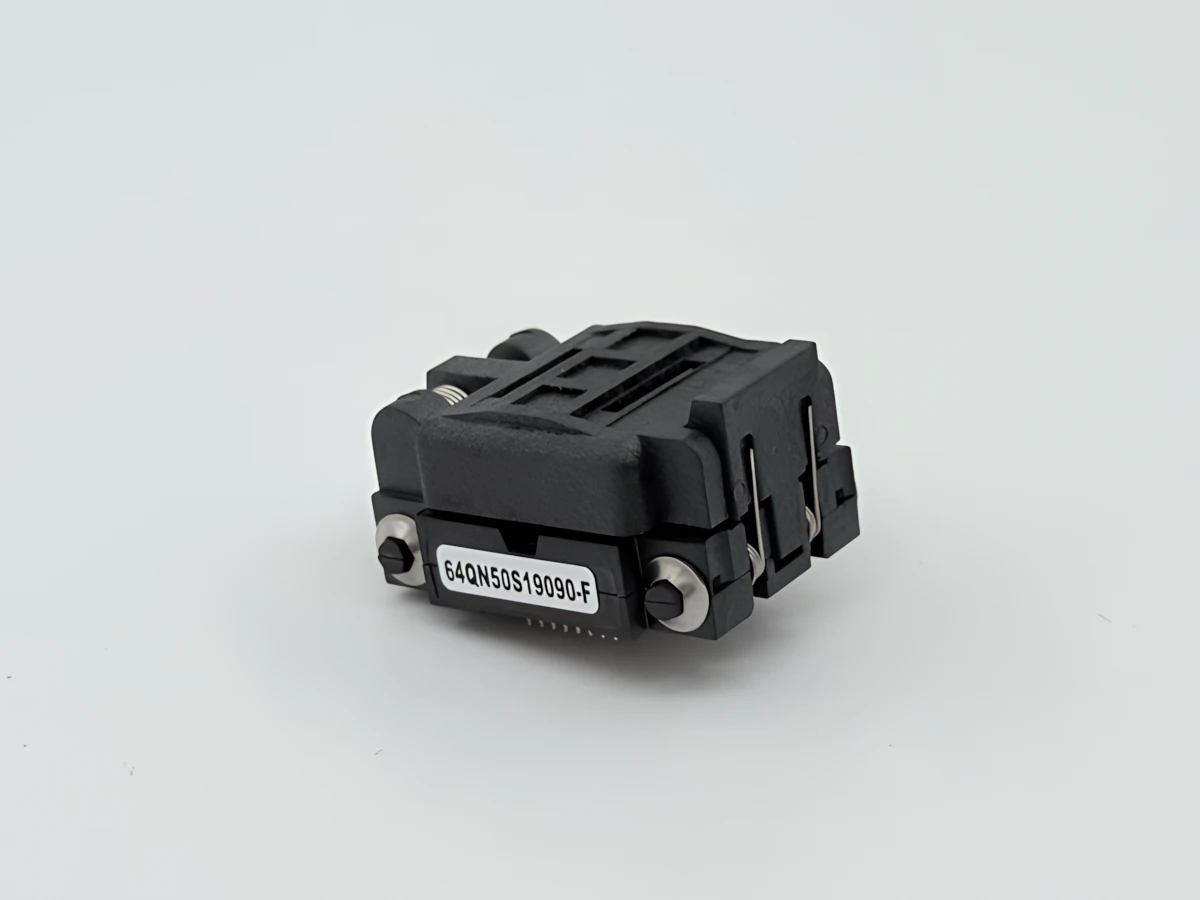

IC socket 64QN50S19090
- Suitable Packages: supports QFN64 packages
- Socket Pitch: 0.5mm pitch
- Number Of Pins: 64 pins

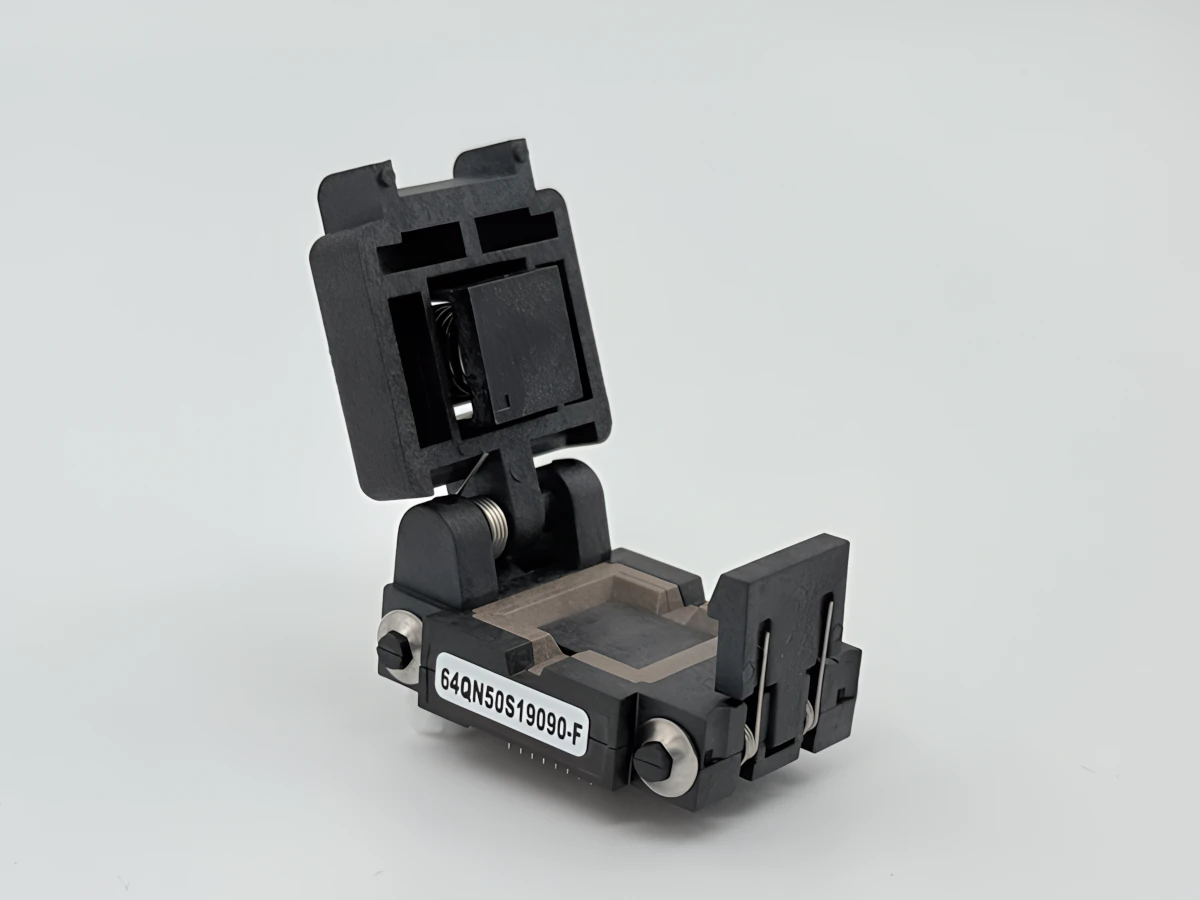

- Socket Design: clam-shell
- Durability: very durable burn-in socket
- Manufacturer: Plastronics
- RoHS: RoHS Compliant

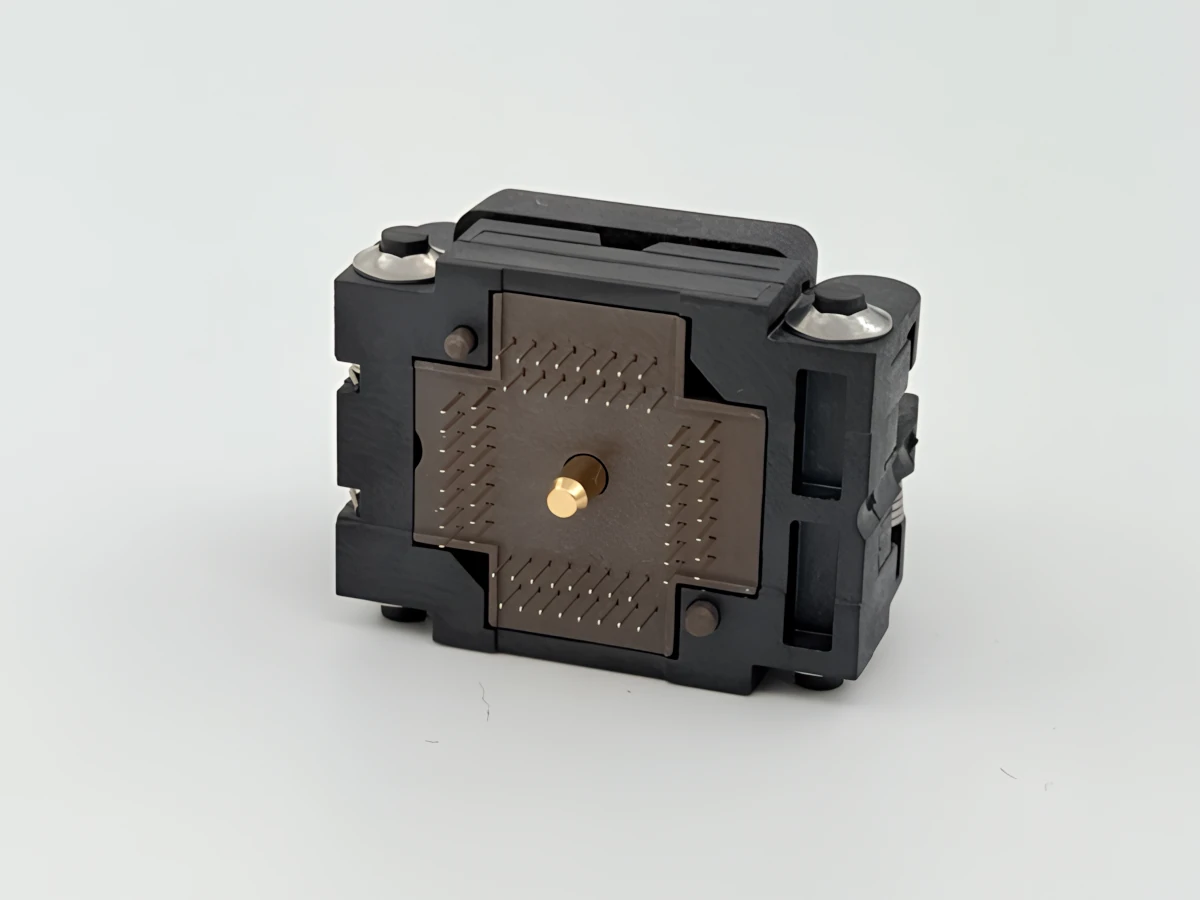

- Mounting Type: through hole, solder-mounted on the PCB
- Country Of Origin: USA
- Stock Availability: Large quantity in stock
- Price: starting at $87.00 per piece (price varies by quantity)
Description:
64QN50S19090 is IC Test & Burn-in socket manufactured by Plastronics, dedicated for 64-pin QFN package with 0.5mm pitch.Socket drawing available upon request.
| IC dimensions | socket dimensions | pin length | ||
| A x B | F | G x H x I | J | |
| 9.00 x 9.00 | 0.85 | 27.43 x 20.32 x 14.73 | - | |
| ||||
Possible alternatives:
Test sockets with similar properties are listed below (23):
64QN50AH19090 (Plastronics)
64QN50AW19090 (Plastronics)
64QN50H29090 (Plastronics)
64QN50A19090 (Plastronics)
64LQ50S19090 (Plastronics)
64LQ50AE19090 (Plastronics)
64LB50T19090 (Plastronics)
64LQ50H29090 (Plastronics)
64LQ50A19090 (Plastronics)
QFN64(9*9)-0.5-CP01GT (KZT)
03714 651 6218A (Loranger)
IC610-0644-006-G (Yamaichi)
QFN-64BT-0.5-01 (Enplas)
QFN-64B-0.5-01 (Enplas)
790-42064-101T (Sensata)
264-5205-01 (3M)
OQN-64BT-0.5-004 (Enplas)
OQN-64B-0.5-004 (Enplas)
NP445-064-002 (Yamaichi)
790-42064-101G (Sensata)
776P4064-101 (Sensata)
776P4064-102 (Sensata)
QFN64(9*9)-0.5-TP01GT (KZT)
Please note that the test sockets listed as possible alternatives to the Plastronics test socket 64QN50S19090 are similar in the way they accept IC packages with the same dimensions. However, they may differ in tolerances, operating methods, mounting to the PCB, PCB footprint, etc. Always refer to the technical datasheet to ensure compatibility with your application
