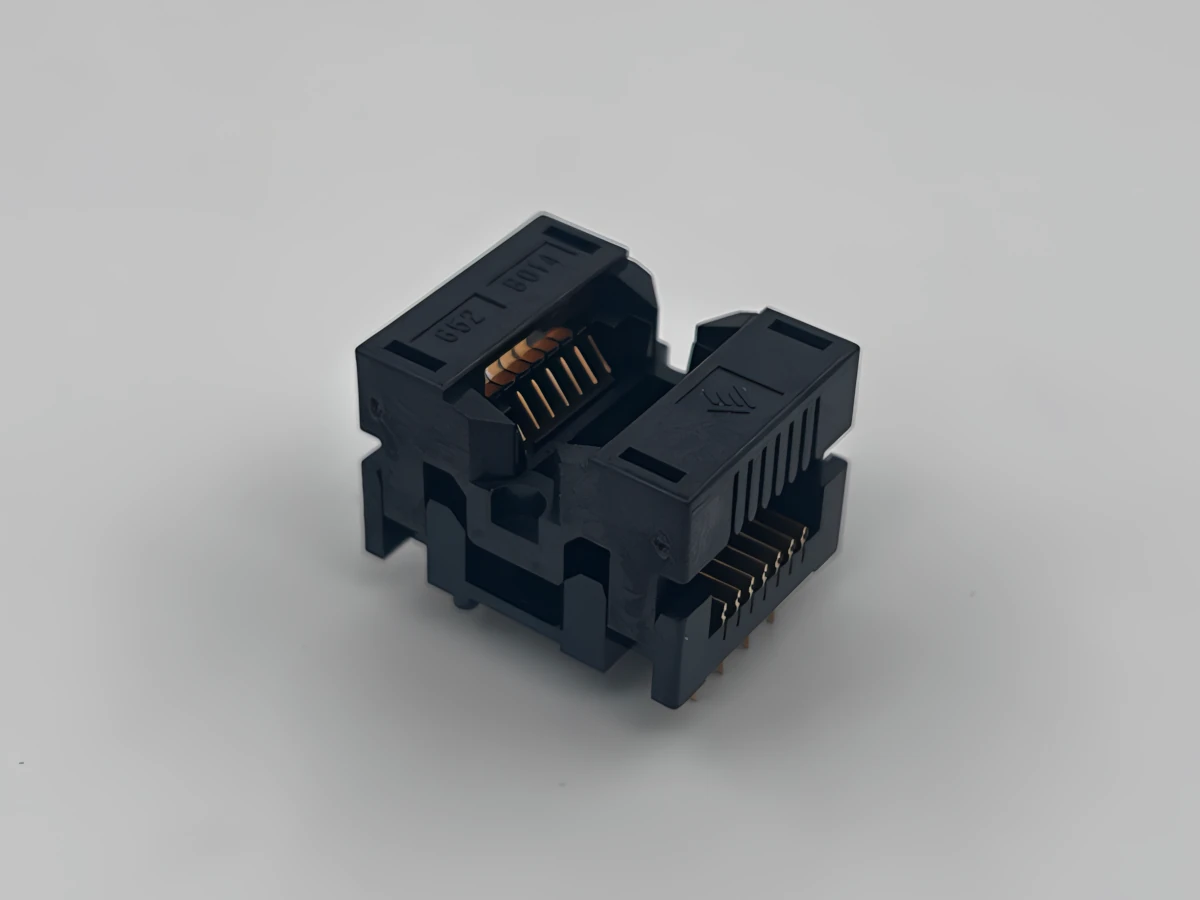

IC socket 652B0142211-002H
- Suitable Packages: supports SOP14 packages
- Socket Pitch: 1.27mm pitch
- Number Of Pins: 14 pins
- Socket Design: open-top
- Durability: very durable burn-in socket, at least 10000 guaranteed actuations
- Manufacturer: Sensata
- RoHS: RoHS Compliant
- Mounting Type: through hole, solder-mounted on the PCB
- Country Of Origin: China
- Stock Availability: Large quantity in stock
- Price: Send inquiry
Description:
652B0142211-002H is IC Test & Burn-in socket manufactured by Sensata, dedicated for 14-pin SOP package with 1.27mm pitch.652B0082211-002H is assembled with high force contacts for Pb-free devices
This is suitable solution for autoloading equipment / equipment operated by robotic handlers.
Socket drawing available upon request.
| IC dimensions | socket dimensions | pin length | |||
| A | B | C | D | G x H x I | J |
| 3.90 | 6.00 | - | 10.48 | 20.75 x 16.18 x 13.60 | 3.20 |
| |||||
Possible alternatives:
Test sockets with similar properties are listed below (1):
652B0142211-002 (Sensata)
Please note that the test sockets listed as possible alternatives to the Sensata test socket 652B0142211-002H are similar in the way they accept IC packages with the same dimensions. However, they may differ in tolerances, operating methods, mounting to the PCB, PCB footprint, etc. Always refer to the technical datasheet to ensure compatibility with your application
