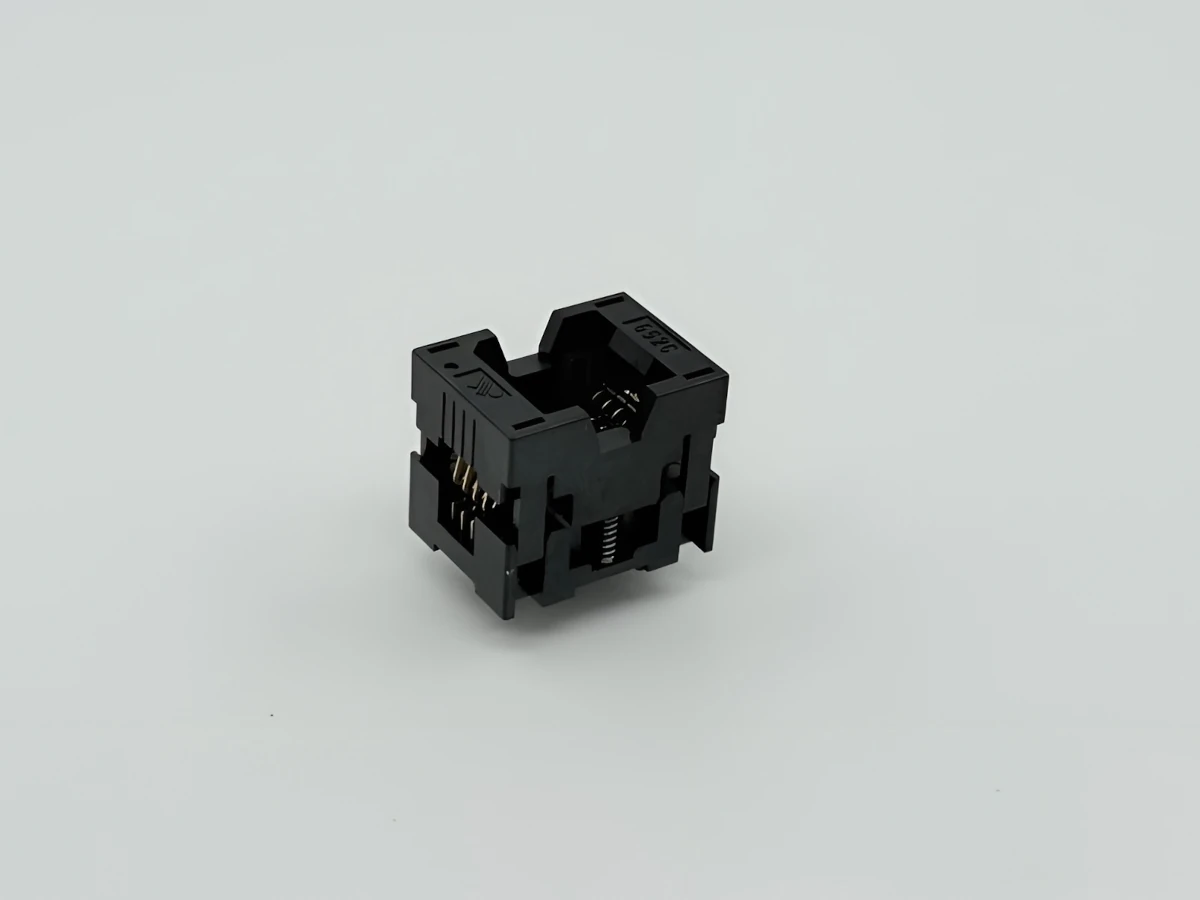

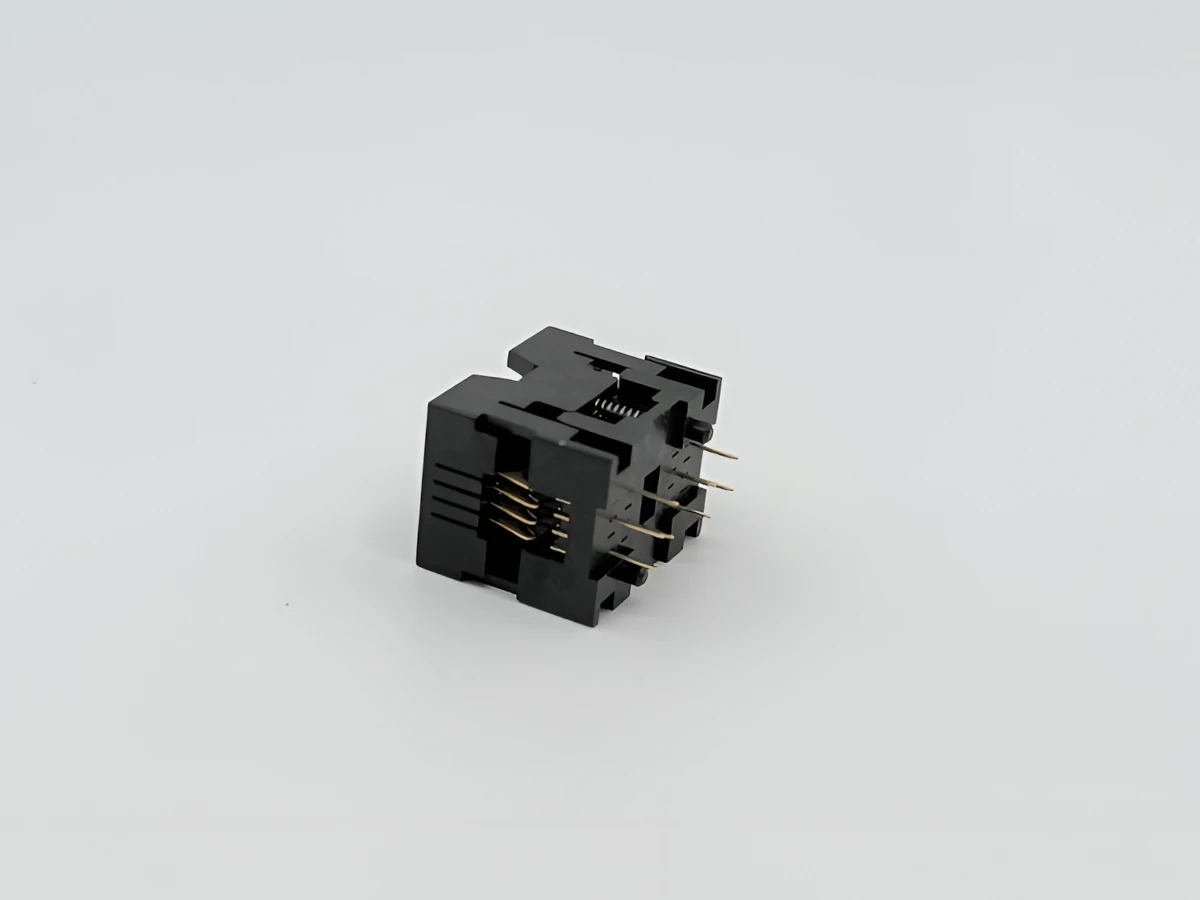

IC socket 652C0082211W003
- Suitable Packages: supports SOP8 packages
- Socket Pitch: 1.27mm pitch
- Number Of Pins: 8 pins
- Socket Design: open-top
- Durability: very durable burn-in socket
- Manufacturer: Sensata
- RoHS: RoHS Compliant
- Mounting Type: through hole, solder-mounted on the PCB
- Country Of Origin: China
- Stock Availability: Bulk quantities available
- Price: Send inquiry
Description:
652C0082211W003 is IC Test & Burn-in socket manufactured by Sensata, dedicated for 8-pin SOP package with 1.27mm pitch.This is suitable solution for autoloading equipment / equipment operated by robotic handlers.
Socket drawing available upon request.
| IC dimensions | socket dimensions | pin length | |||
| A | B | C | D | G x H x I | J |
| 5.30 | 7.90 | - | 5.30 | 17.20 x 12.80 x 13.60 | 3.20 |
| |||||
