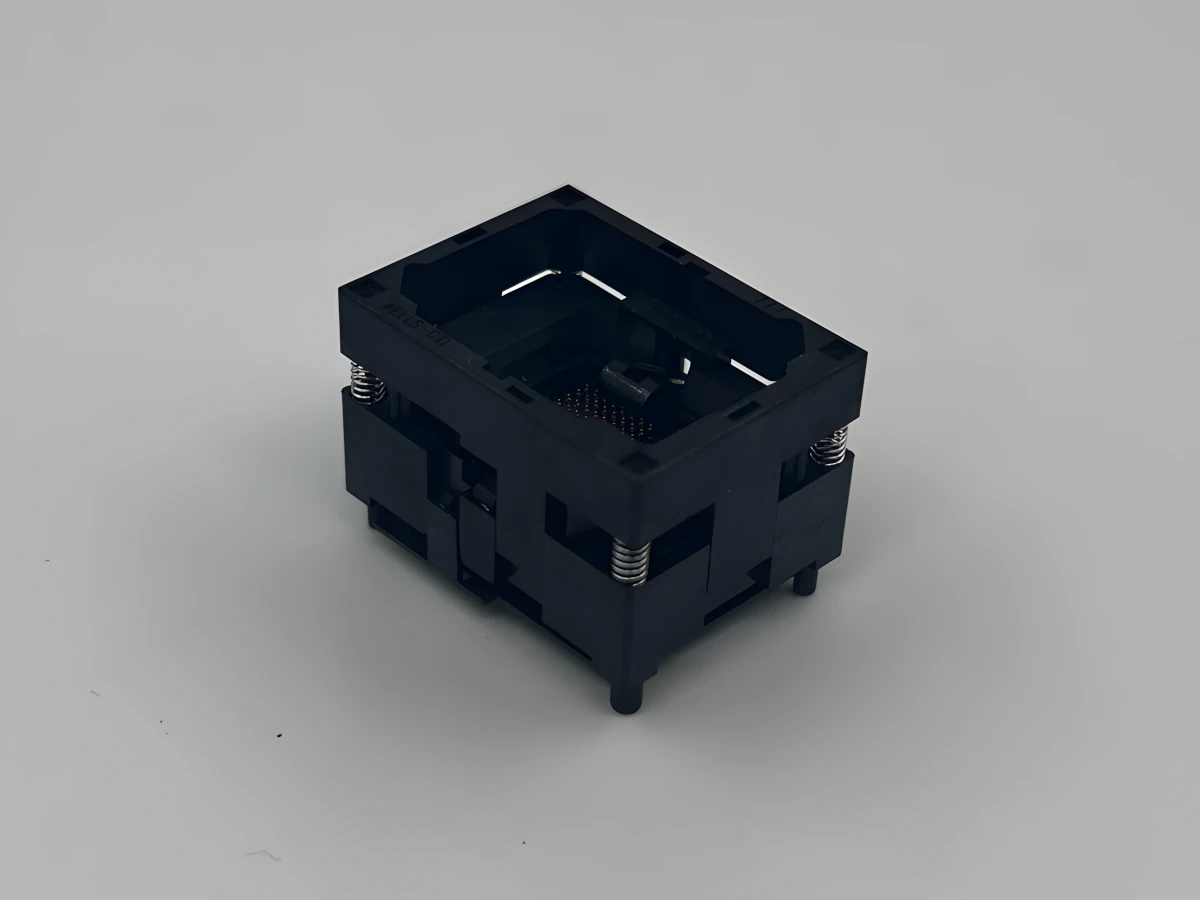

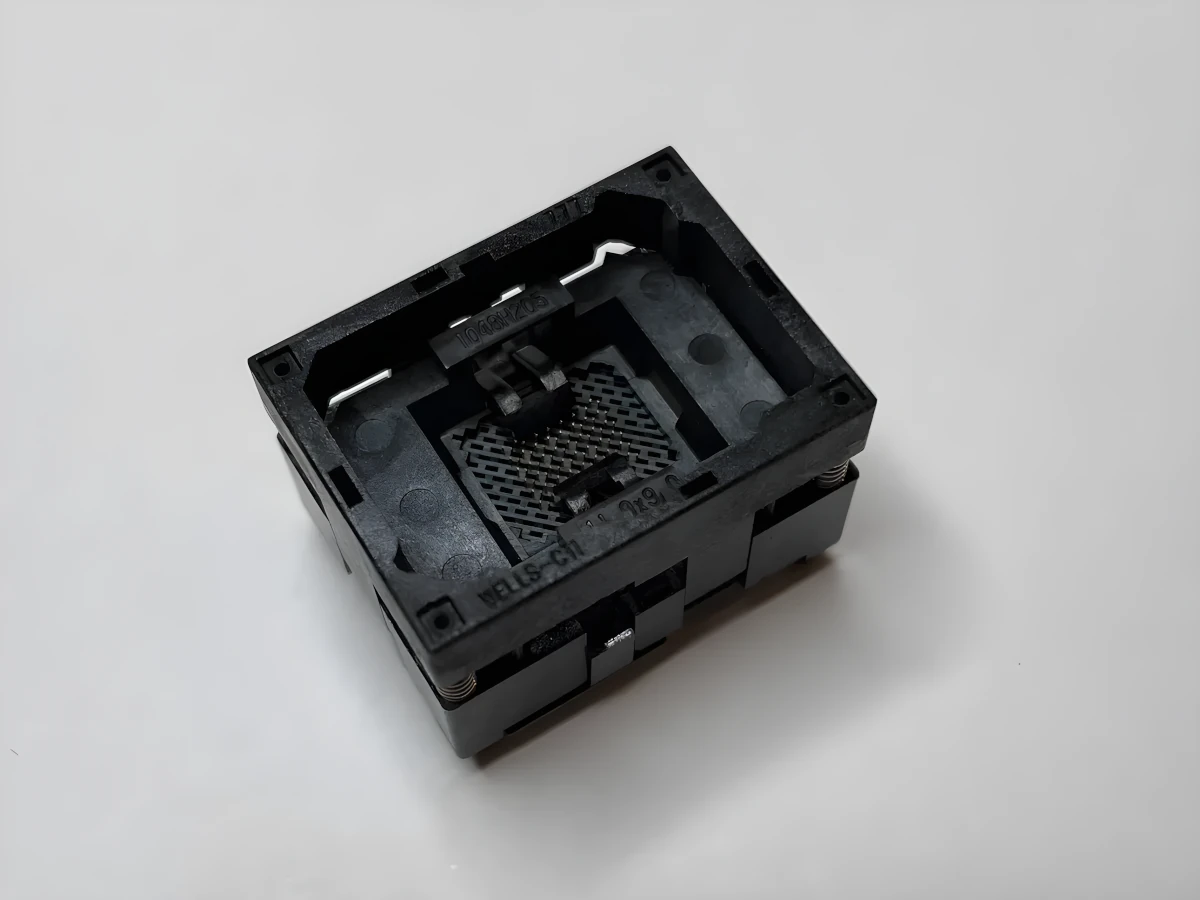

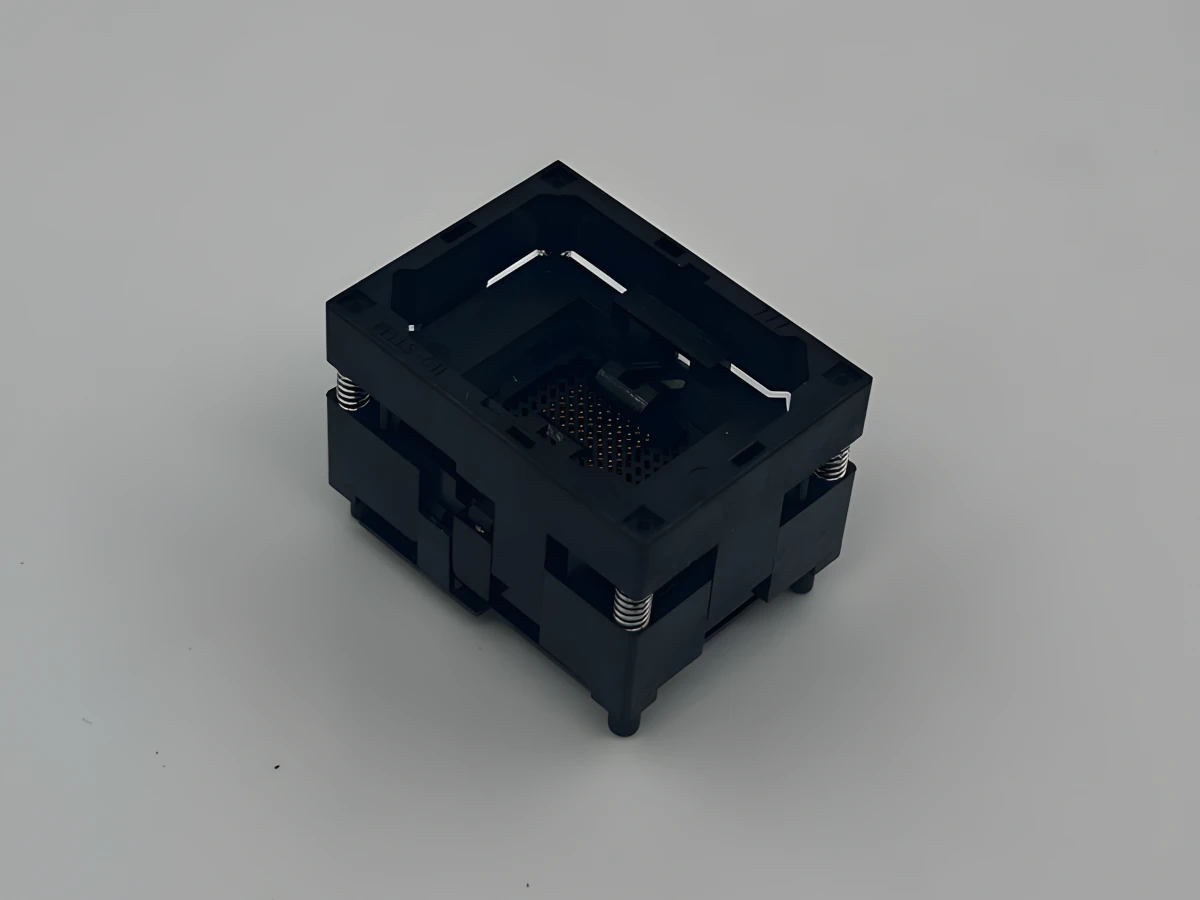

image of 777E1048H205

IC socket 777E1048H205

  • Suitable Packages: supports BGA48 packages
  • Socket Pitch: 0.8mm pitch
  • Number Of Pins: 48 pins
  • Socket Design: open-top
  • Durability: very durable burn-in socket
  • Manufacturer: Sensata
  • RoHS: RoHS Compliant
  • Mounting Type: through hole, solder-mounted on the PCB
  • Country Of Origin: South Korea
  • Stock Availability: Large quantity in stock
  • Price: starting at $53.50 per piece (price varies by quantity)

Description:

777E1048H205 is IC Test & Burn-in socket manufactured by Sensata, dedicated for 48-ball BGA package with 0.8mm pitch.
burn-in test socket designed for BGA 48-ball packages size 11.00x9.00mm
Very durable socket with 10000 guaranteed cycles.
This is suitable solution for autoloading equipment / equipment operated by robotic handlers.
Socket drawing available upon request.


Possible alternatives:

Test sockets with similar properties are listed below (2):
CBG048-A70N63 (Sensata)
FBGA048-A105P63 (Sensata)
Please note that the test sockets listed as possible alternatives to the Sensata test socket 777E1048H205 are similar in the way they accept IC packages with the same dimensions. However, they may differ in tolerances, operating methods, mounting to the PCB, PCB footprint, etc. Always refer to the technical datasheet to ensure compatibility with your application
