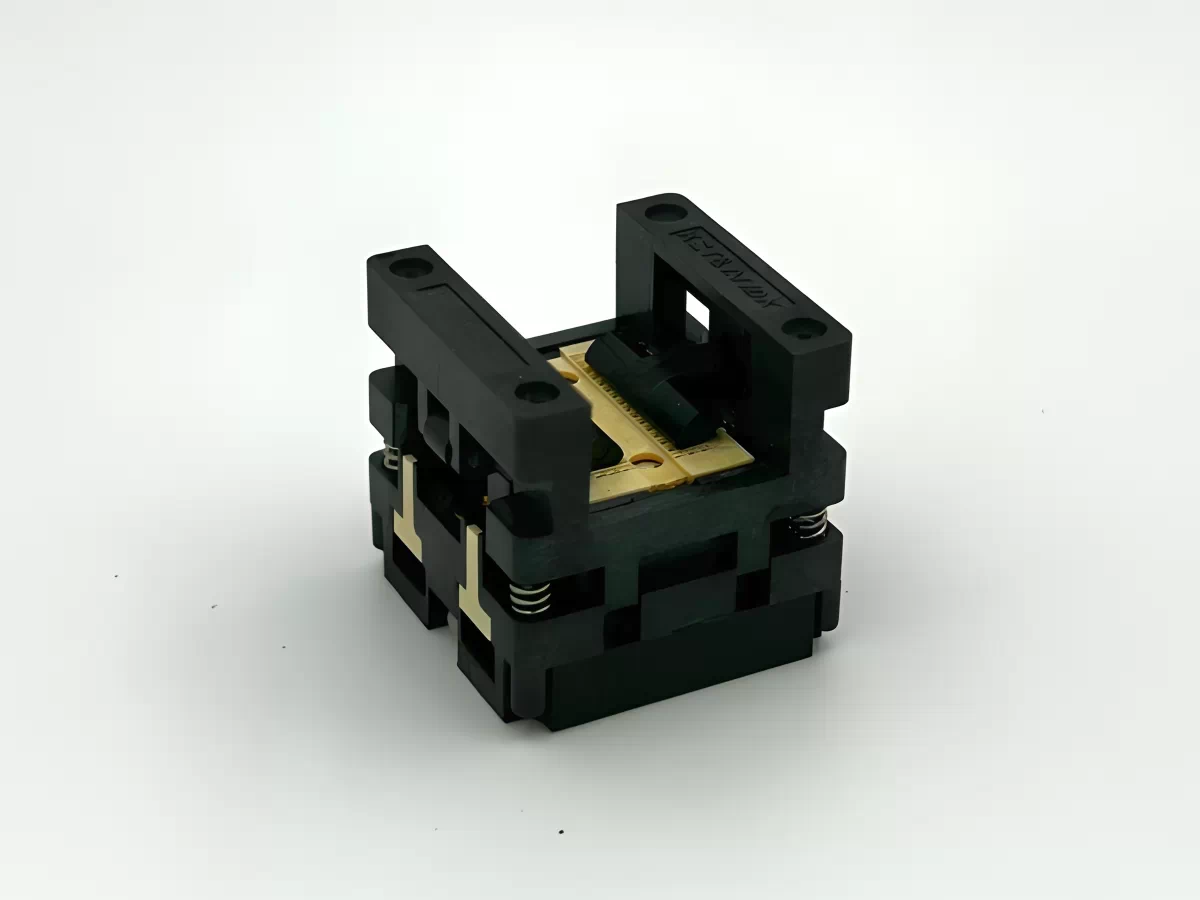

image of BGA96-0.8-003SNH

IC socket BGA96-0.8-003SNH

  • Suitable Packages: supports BGA96 packages
  • Socket Pitch: 0.8mm pitch
  • Number Of Pins: 96 pins
  • Socket Design: open-top
  • Durability: very durable burn-in socket, at least 25000 guaranteed actuations
  • Manufacturer: KZT
  • RoHS: RoHS Compliant
  • Mounting Type: surface mount, secured with screws to the PCB
  • Country Of Origin: China
  • Stock Availability: Out of stock, please inquire for availability
  • Price: Send inquiry

Description:

BGA96-0.8-003SNH is IC Test & Burn-in socket manufactured by KZT, dedicated for 96-ball BGA package with 0.8mm pitch.
This is suitable solution for autoloading equipment / equipment operated by robotic handlers.
Socket drawing available upon request.
