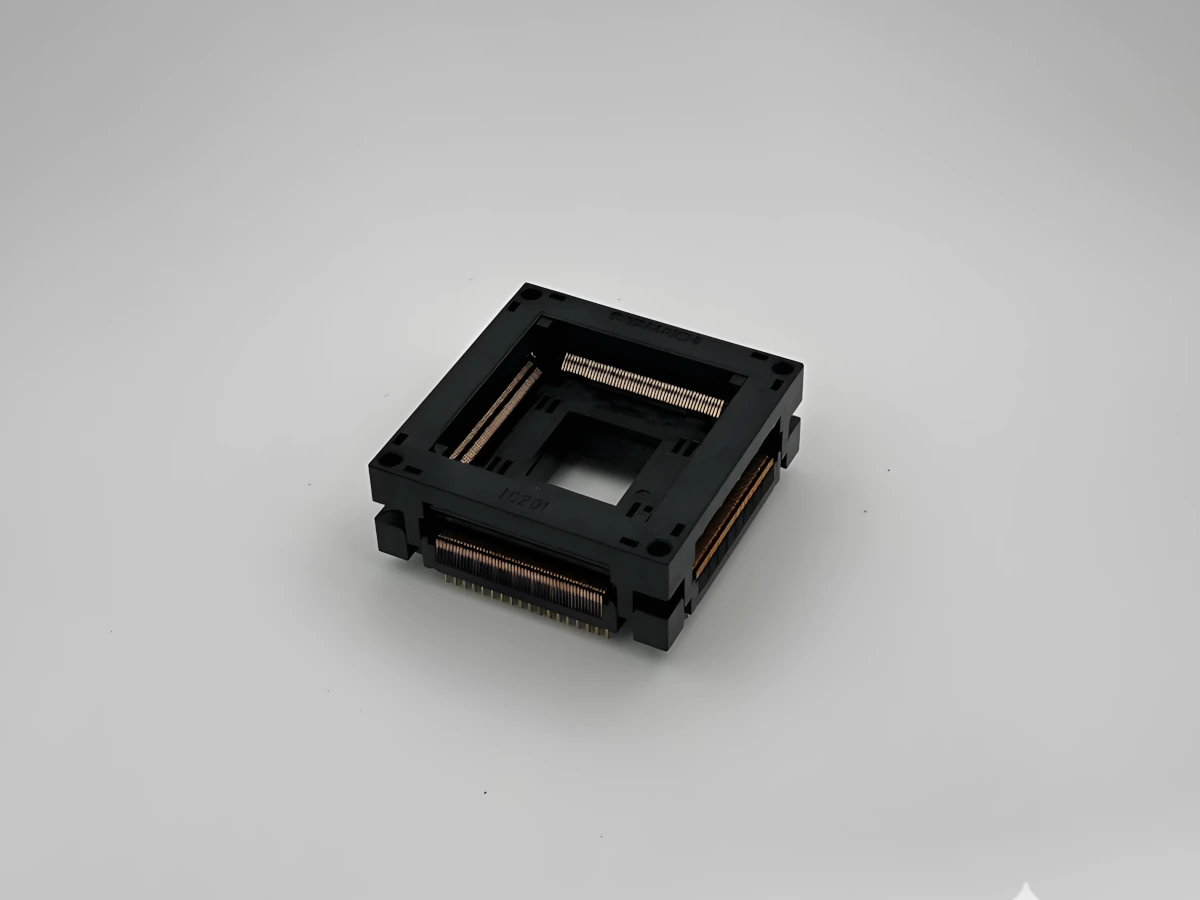

IC socket IC201-2084-029
- Suitable Packages: supports QFP208 packages
- Socket Pitch: 0.5mm pitch
- Number Of Pins: 208 pins
- Socket Design: open-top
- Durability: very durable burn-in socket, at least 10000 guaranteed actuations
- Manufacturer: Yamaichi
- RoHS: RoHS Compliant
- Mounting Type: through hole, solder-mounted on the PCB
- Country Of Origin: Japan
- Stock Availability: Limited stock available
- Price: Send inquiry
Description:
IC201-2084-029 is IC Test & Burn-in socket manufactured by Yamaichi, dedicated for 208-pin QFP package with 0.5mm pitch.This is suitable solution for autoloading equipment / equipment operated by robotic handlers.
Socket drawing available upon request.
| IC dimensions | socket dimensions | pin length | |||
| A x B | C x D | E | F | G x H x I | J |
| 28.00 x 28.00 | 30.60 x 30.60 | - | 1.67 | 45.60 x 45.60 x 16.50 | 3.70 |
| |||||
Possible alternatives:
Test sockets with similar properties are listed below (22):
IC51-2084-1052-58 (Yamaichi)
IC51-2084-1052-4 (Yamaichi)
IC51-2084-1052-2 (Yamaichi)
IC51-2084-1052-9 (Yamaichi)
IC51-2084-1052-13 (Yamaichi)
IC51-2084-1052-11 (Yamaichi)
IC51-1052.AC-26657 (Yamaichi)
IC51-2084-1052-55 (Yamaichi)
IC200-2084-010 (Yamaichi)
IC357-2084-019P-2 (Yamaichi)
FPQ-208-0.5-06 (Enplas)
653-2083812-106 (Sensata)
CQF208-044 (Sensata)
7228-208-6-08 (Sensata)
7028-208-6-08 (Sensata)
3028-208-6-08 (Sensata)
CQF208-053 (Texas Instrument)
CQF208-111 (Texas Instrument)
OTQ-208-0.5-09 (Enplas)
OTQ-208-0.5-01 (Enplas)
3228-208-6-08 (Sensata)
Please note that the test sockets listed as possible alternatives to the Yamaichi test socket IC201-2084-029 are similar in the way they accept IC packages with the same dimensions. However, they may differ in tolerances, operating methods, mounting to the PCB, PCB footprint, etc. Always refer to the technical datasheet to ensure compatibility with your application
