IC socket IC234-1004-023N
- Suitable Packages: supports QFP100 packages
- Socket Pitch: 0.5mm pitch
- Number Of Pins: 100 pins
- Socket Design: open-top
- Durability: very durable burn-in socket, at least 10000 guaranteed actuations
- Manufacturer: Yamaichi
- RoHS: RoHS Compliant
- Mounting Type: through hole, solder-mounted on the PCB
- Country Of Origin: Japan
- Stock Availability: In stock for quick delivery
- Price: Send inquiry
Description:

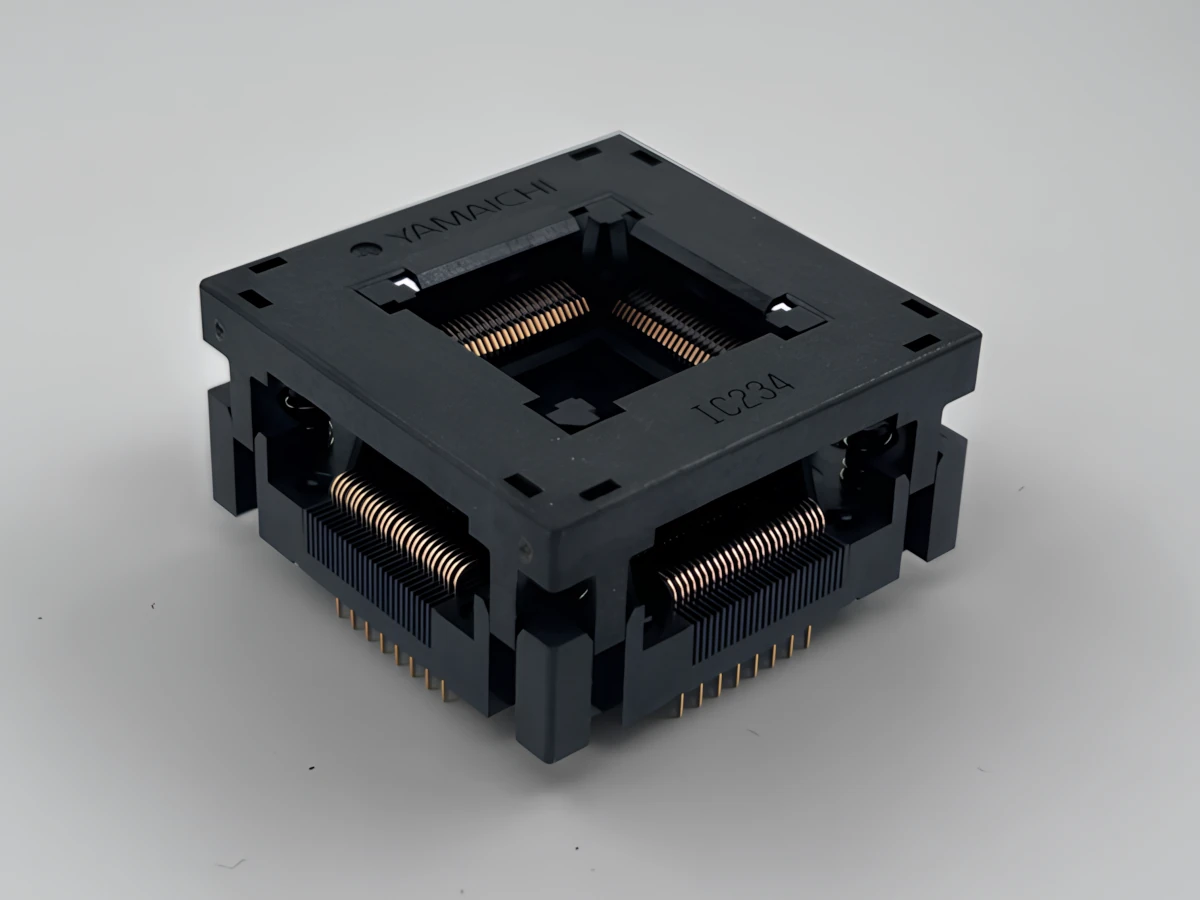

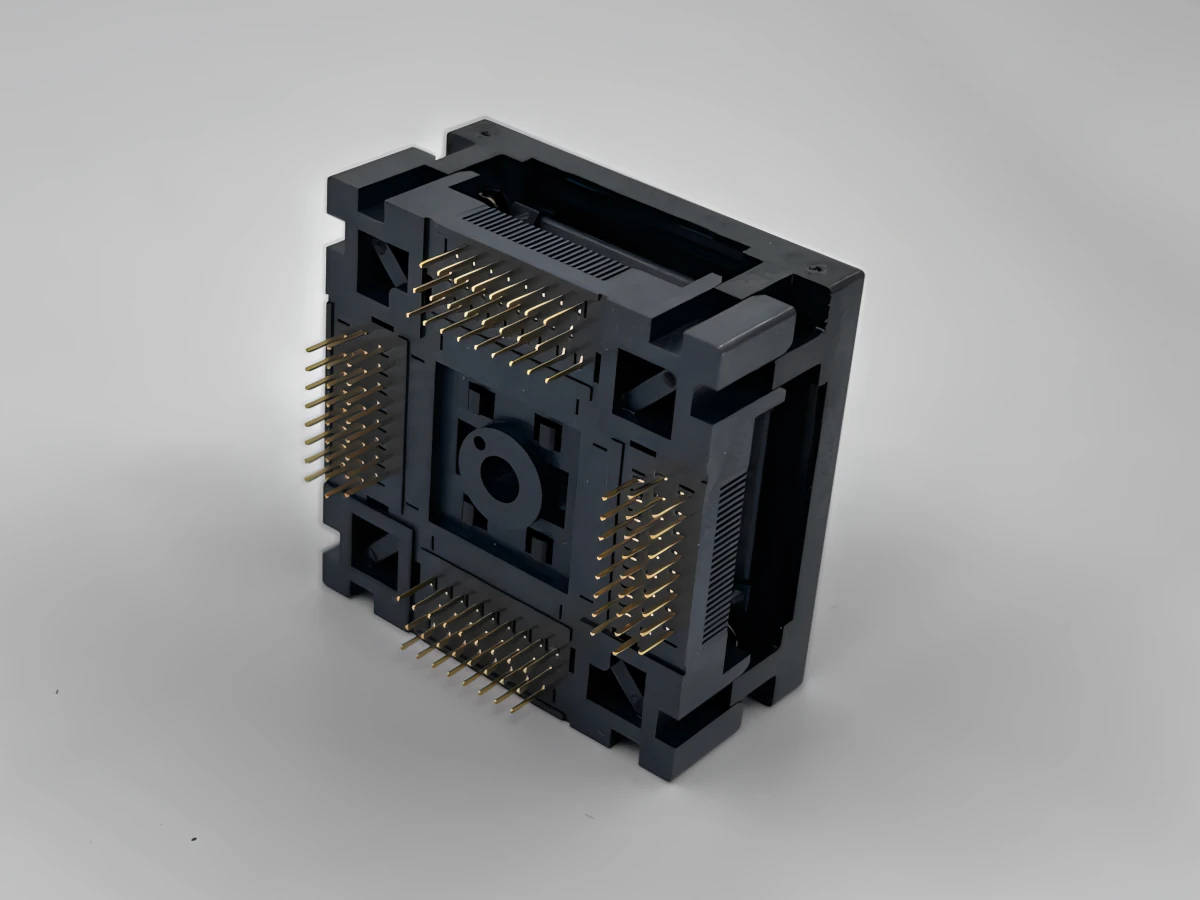

IC234-1004-023N is IC Test & Burn-in socket manufactured by Yamaichi, dedicated for 100-pin QFP package with 0.5mm pitch.This is suitable solution for autoloading equipment / equipment operated by robotic handlers.
Socket drawing available upon request.
| IC dimensions | socket dimensions | pin length | |||
| A x B | C x D | E | F | G x H x I | J |
| 14.00 x 14.00 | 16.00 x 16.00 | - | 0.67 | 33.60 x 33.60 | - |
| |||||
Possible alternatives:
Test sockets with similar properties are listed below (24):
IC51-1004-809-6 (Yamaichi)
IC51-1004-809 (Yamaichi)
IC51-1004-809-2 (Yamaichi)
IC51-1004-809-14 (Yamaichi)
IC357-1004-053P (Yamaichi)
IC500-1004-004 (Yamaichi)
IC357-1004-053 (Yamaichi)
IC357-1004-014 (Yamaichi)
IC357-1004-002 (Yamaichi)
IC201-1004-043 (Yamaichi)
IC201-1004-008 (Yamaichi)
FPQ-100-0.5-10A (Enplas)
FPQ-100-0.5-16A (Enplas)
FPQ-100-0.5-23 (Enplas)
FPQ-100-0.5-14 (Enplas)
OTQ-100S-0.5-001 (Enplas)
OTQ-100-0.5-19 (Enplas)
OTQ-100-0.5-09 (Enplas)
OTQ-100-0.5-22 (Enplas)
OTQ-100-0.5-10 (Enplas)
OTQ-100SG-0.5-008 (Enplas)
OTQ-100-0.5-11 (Enplas)
QFP100-0.5-TP01N (KZT)
OTQ-100-0.5-01 (Enplas)
Please note that the test sockets listed as possible alternatives to the Yamaichi test socket IC234-1004-023N are similar in the way they accept IC packages with the same dimensions. However, they may differ in tolerances, operating methods, mounting to the PCB, PCB footprint, etc. Always refer to the technical datasheet to ensure compatibility with your application
