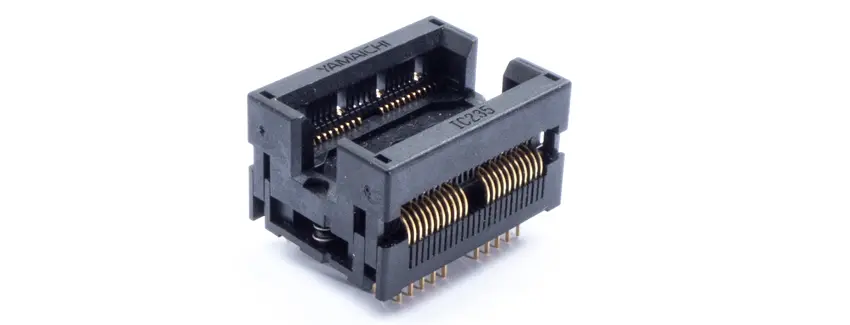

IC socket IC235-0442-215
- Suitable Packages: supports TSOP44 packages
- Socket Pitch: 0.8mm pitch
- Number Of Pins: 44 pins
- Socket Design: open-top
- Durability: very durable burn-in socket
- Manufacturer: Yamaichi
- RoHS: RoHS Compliant
- Mounting Type: through hole, solder-mounted on the PCB
- Country Of Origin: Japan
- Stock Availability: Out of stock, please inquire for availability
- Price: Send inquiry
Description:
IC235-0442-215 is IC Test & Burn-in socket manufactured by Yamaichi, dedicated for 44-pin TSOP package with 0.8mm pitch.Depopulated socket for TSOP packages with 10.16mm x 21.35mm (11.76mmm tip to tip)
This is suitable solution for autoloading equipment / equipment operated by robotic handlers.
Socket drawing available upon request.
| IC dimensions | socket dimensions | pin length | |||
| A | B | C | D | G x H x I | J |
| 10.16 | 11.76 | - | 21.35 | 20.20 x 26.40 | - |
| |||||
Possible alternatives:
Test sockets with similar properties are listed below (3):
Please note that the test sockets listed as possible alternatives to the Yamaichi test socket IC235-0442-215 are similar in the way they accept IC packages with the same dimensions. However, they may differ in tolerances, operating methods, mounting to the PCB, PCB footprint, etc. Always refer to the technical datasheet to ensure compatibility with your application
