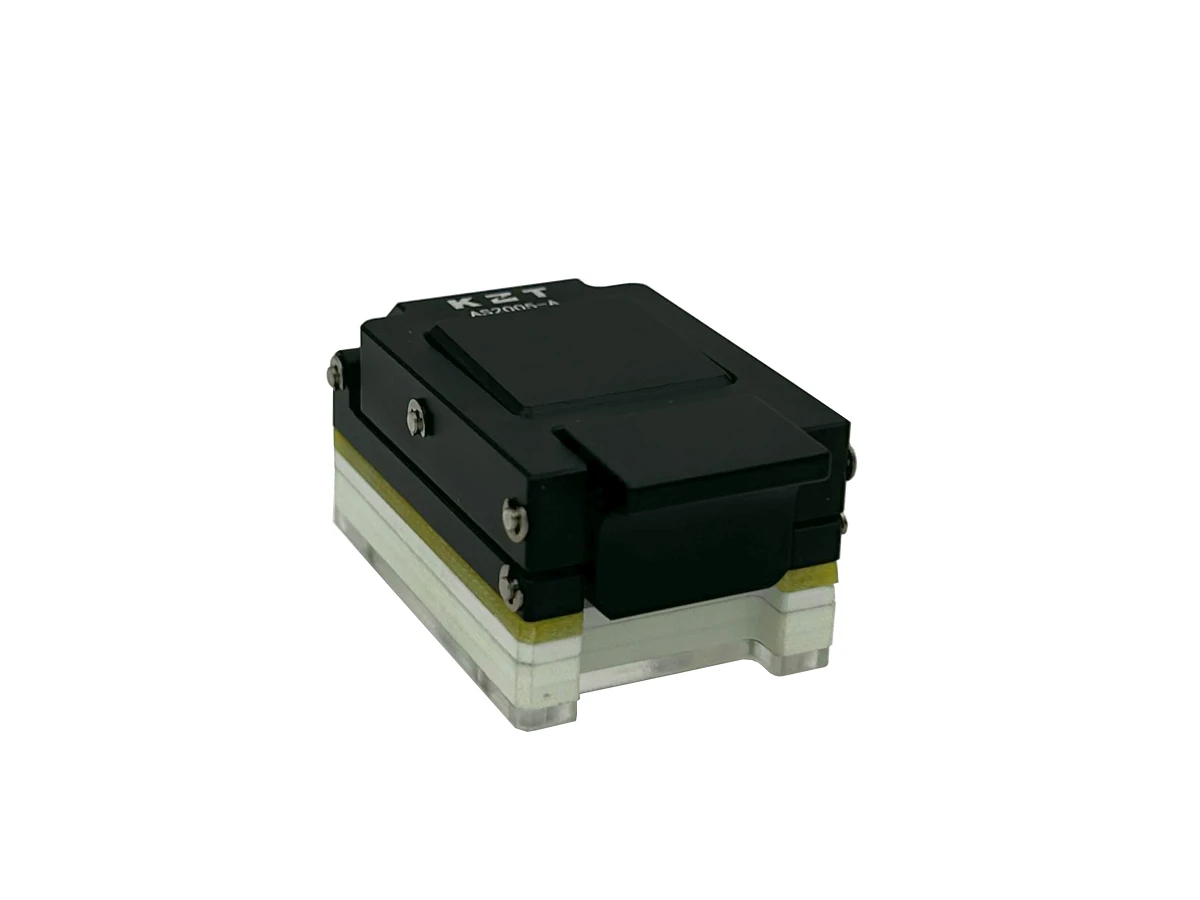

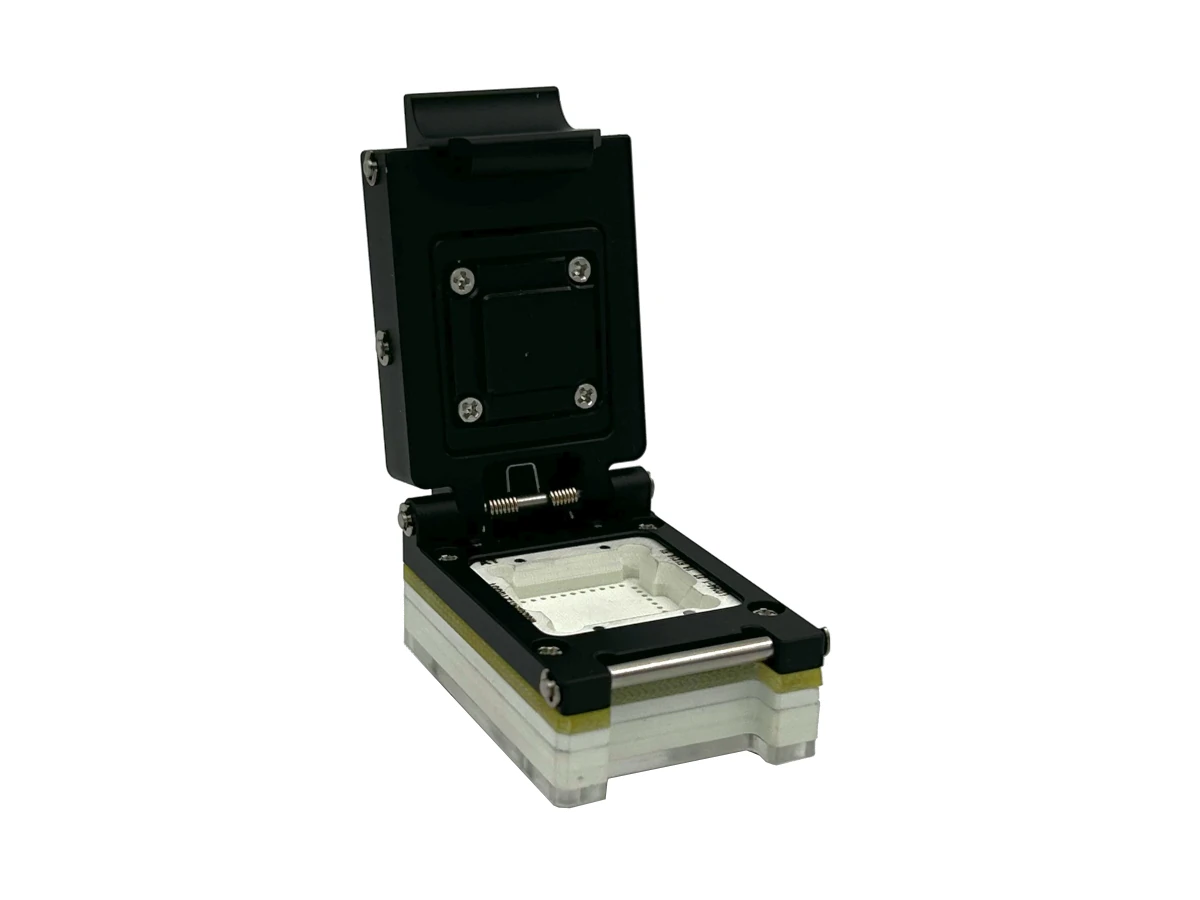

image of LCC44-1.27-AS01KNL

IC socket LCC44-1.27-AS01KNL

  • Suitable Packages: supports LCC44 packages
  • Socket Pitch: 1.27mm pitch
  • Number Of Pins: 44 pins
  • Socket Design: clam-shell
  • Durability: very durable burn-in socket, at least 50000 guaranteed actuations
  • Manufacturer: KZT
  • RoHS: RoHS Compliant
  • Mounting Type: surface mount, secured with screws to the PCB
  • Country Of Origin: China
  • Stock Availability: Out of stock, please inquire for availability
  • Price: Send inquiry

Description:

LCC44-1.27-AS01KNL is IC Test & Burn-in socket manufactured by KZT, dedicated for 44-pin LCC package with 1.27mm pitch.
Socket drawing available upon request.


Possible alternatives:

Test sockets with similar properties are listed below (1):
YEHS51-0044-04 (Yamaichi)
Please note that the test sockets listed as possible alternatives to the KZT test socket LCC44-1.27-AS01KNL are similar in the way they accept IC packages with the same dimensions. However, they may differ in tolerances, operating methods, mounting to the PCB, PCB footprint, etc. Always refer to the technical datasheet to ensure compatibility with your application
