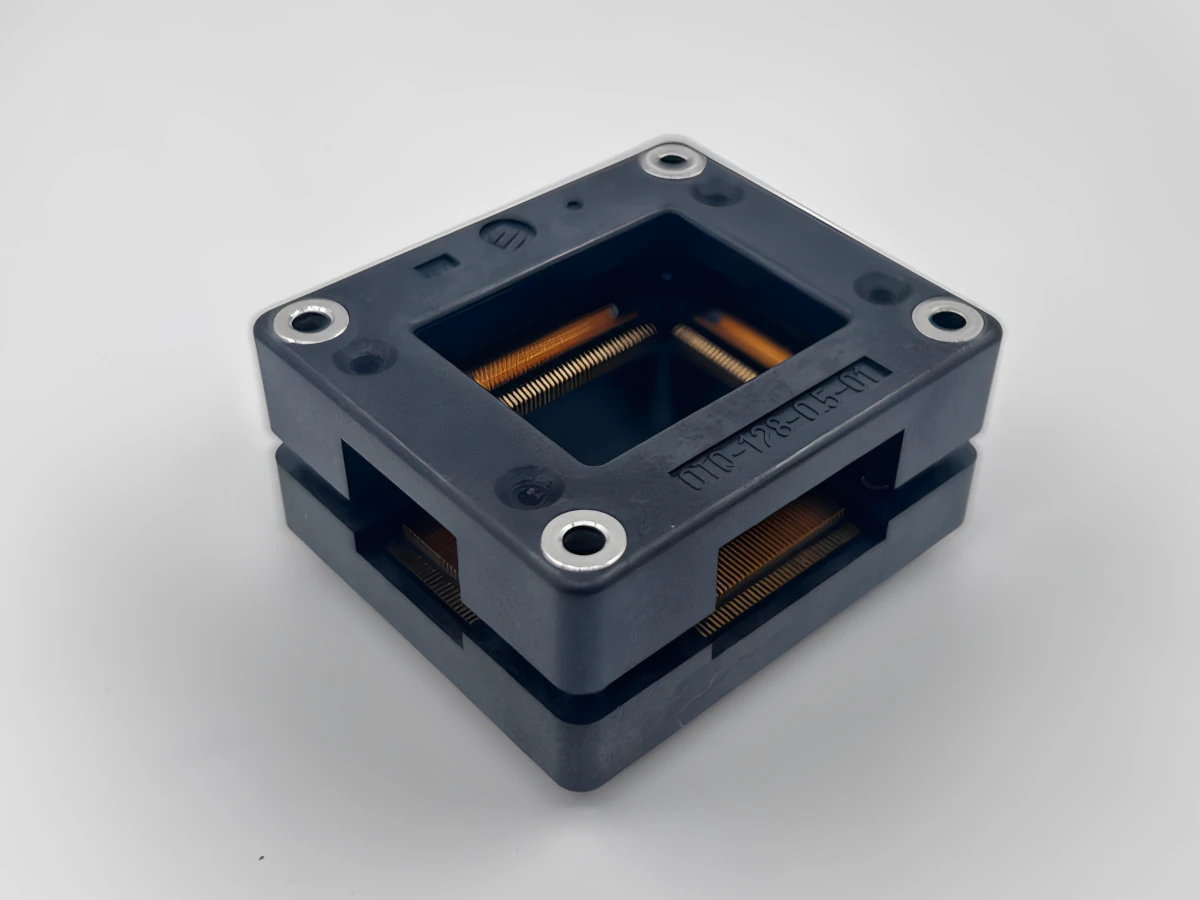

image of OTQ-128-0.5-01

IC socket OTQ-128-0.5-01

  • Suitable Packages: supports QFP128 packages
  • Socket Pitch: 0.5mm pitch
  • Number Of Pins: 128 pins
  • Socket Design: open-top
  • Durability: very durable burn-in socket, at least 10000 guaranteed actuations
  • Manufacturer: Enplas
  • RoHS: RoHS Compliant
  • Mounting Type: through hole, solder-mounted on the PCB
  • Country Of Origin: Japan
  • Stock Availability: In stock for quick delivery
  • Price: Send inquiry

Description:

OTQ-128-0.5-01 is IC Test & Burn-in socket manufactured by Enplas, dedicated for 128-pin QFP package with 0.5mm pitch.
This is suitable solution for autoloading equipment / equipment operated by robotic handlers.
Socket drawing available upon request.

Ask about OTQ-128-0.5-01
Product rating:
Product rating:
Ask about OTQ-128-0.5-01
OTQ-128-0.5-01 dimension table (mm):
IC dimensions socket dimensions pin length
A x B C x D E F G x H x I J
20.00 x 14.00 22.00 x 16.00 - - 47.00 x 47.00 x 22.00 3.50
OTQ-128-0.5-01 technical specification
