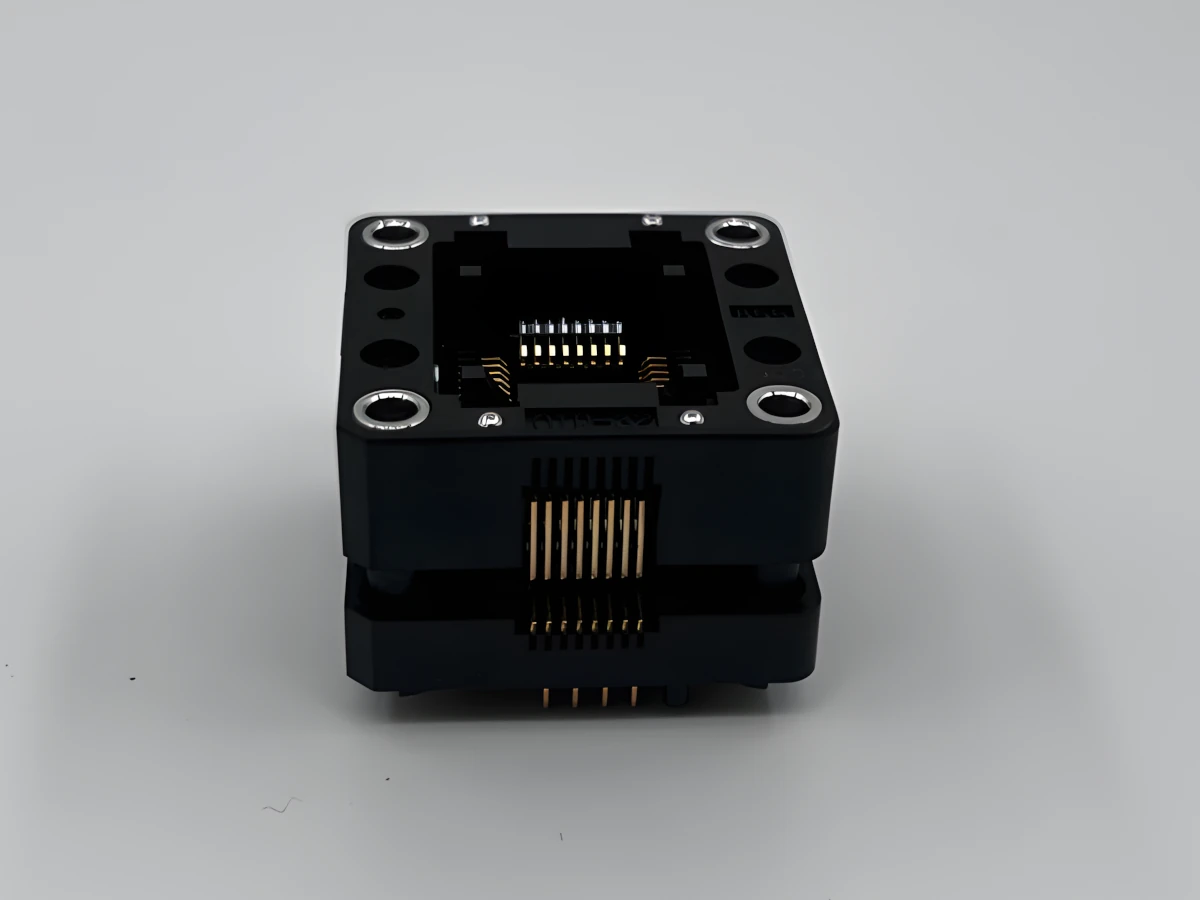

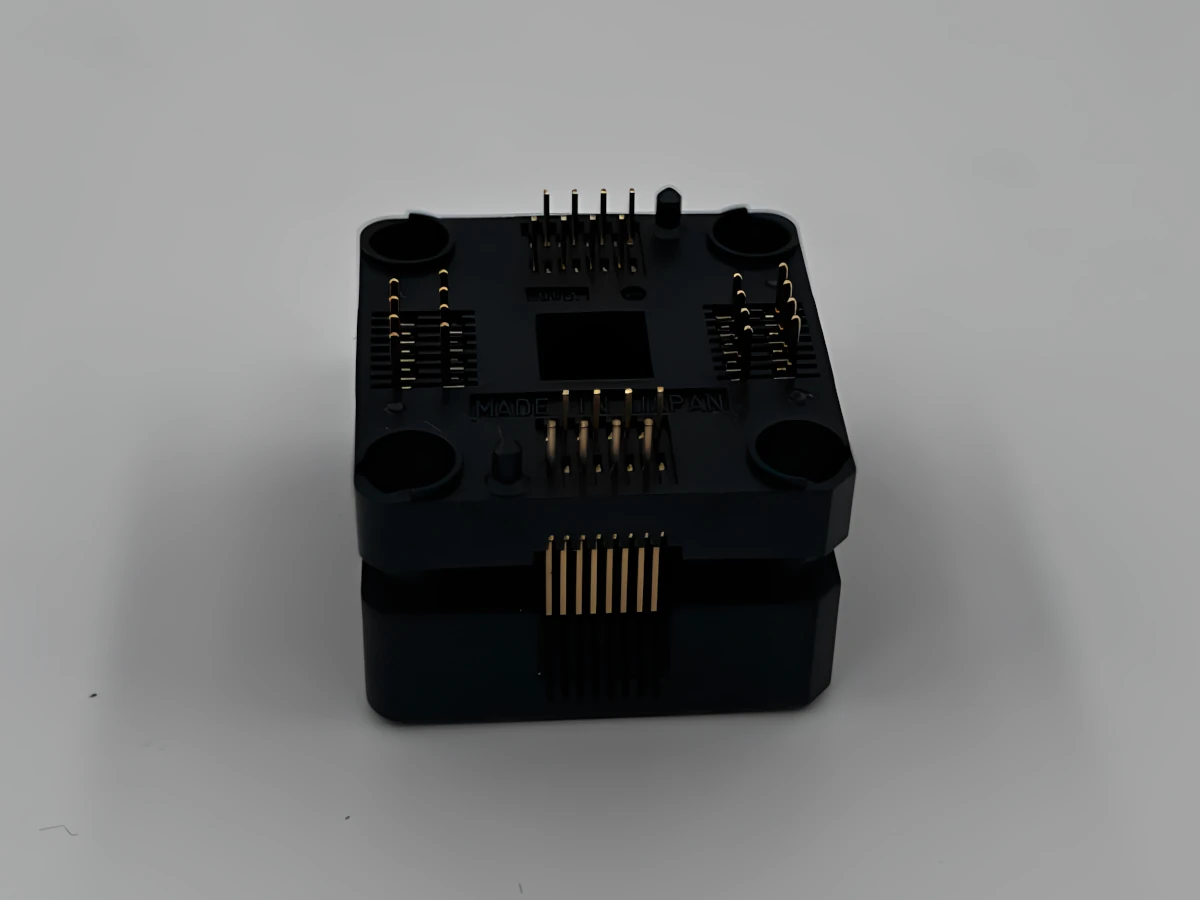

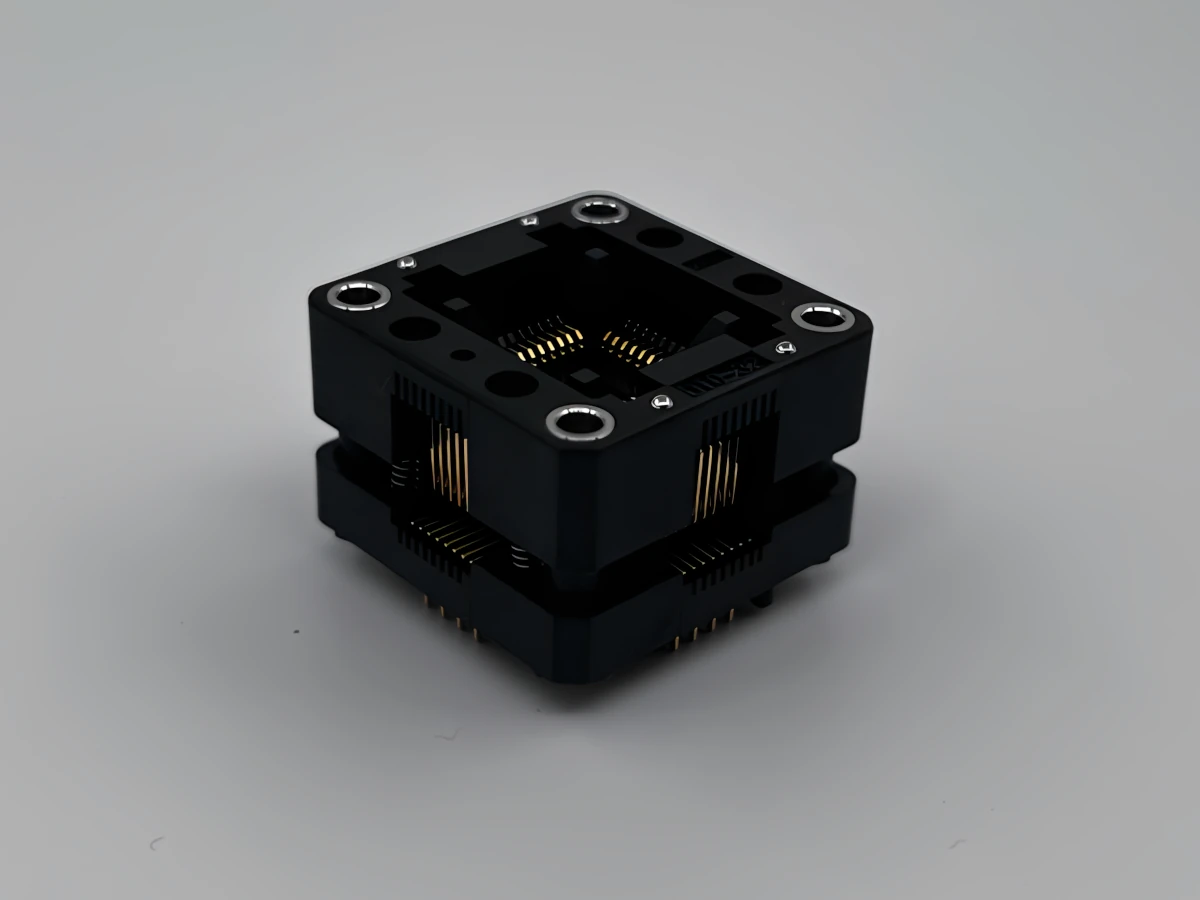

image of OTQ-32-0.8-003

IC socket OTQ-32-0.8-003

  • Suitable Packages: supports QFP32 packages
  • Socket Pitch: 0.8mm pitch
  • Number Of Pins: 32 pins
  • Socket Design: open-top
  • Durability: very durable burn-in socket
  • Manufacturer: Enplas
  • RoHS: RoHS Compliant
  • Mounting Type: through hole, solder-mounted on the PCB
  • Country Of Origin: Japan
  • Stock Availability: Bulk quantities available
  • Price: Send inquiry

Description:

OTQ-32-0.8-003 is IC Test & Burn-in socket manufactured by Enplas, dedicated for 32-pin QFP package with 0.8mm pitch.
IC test socket OTQ-32-0.8-003 fits many IC packages including Altera (EPC1441, EPC1064), Analog Devices (ADM1168, ADM1068, ADM1069), Atmel/Microchip (ATmega168, ATmega328, ATmega48 ... in QFP32 package), Freescale (MC9S08RC8, MC9S08RE8, MC9S08SV8, MCHC908MR8, S9S08DN32 ... in QFP32 package), Megawin (MPC82E54A, MPC82L54A), NXP, STMicroelectronics and many others.
This is suitable solution for autoloading equipment / equipment operated by robotic handlers.
Socket drawing available upon request.

Ask about OTQ-32-0.8-003
Product rating:
Product rating:
Ask about OTQ-32-0.8-003
OTQ-32-0.8-003 dimension table (mm):
IC dimensions socket dimensions pin length
A x B C x D E F G x H x I J
7.00 x 7.00 9.00 x 9.00 - - - -
OTQ-32-0.8-003 technical specification

Possible alternatives:

Test sockets with similar properties are listed below (7):
FPQ-32-0.8-01 (Enplas)
OTQ-32-0.8-02 (Enplas)
IC51-0324-1498 (Yamaichi)
IC234-0324-044N (Yamaichi)
Please note that the test sockets listed as possible alternatives to the Enplas test socket OTQ-32-0.8-003 are similar in the way they accept IC packages with the same dimensions. However, they may differ in tolerances, operating methods, mounting to the PCB, PCB footprint, etc. Always refer to the technical datasheet to ensure compatibility with your application
