IC socket OTS-14-1.0-01
- Suitable Packages: supports PSOP14 packages
- Socket Pitch: 1.0mm pitch
- Number Of Pins: 14 pins
- Socket Design: open-top
- Durability: very durable burn-in socket, at least 10000 guaranteed actuations
- Manufacturer: Enplas
- RoHS: RoHS Compliant
- Mounting Type: through hole, solder-mounted on the PCB
- Country Of Origin: Japan
- Stock Availability: Out of stock, please inquire for availability
- Price: Send inquiry
Description:
OTS-14-1.0-01 is IC Test & Burn-in socket manufactured by Enplas, dedicated for 14-pin PSOP package with 1.0mm pitch.OTS-14-1.0-01 actuation force is 1.2kg. This socket has two GND pins.
This is suitable solution for autoloading equipment / equipment operated by robotic handlers.
Socket drawing available upon request.

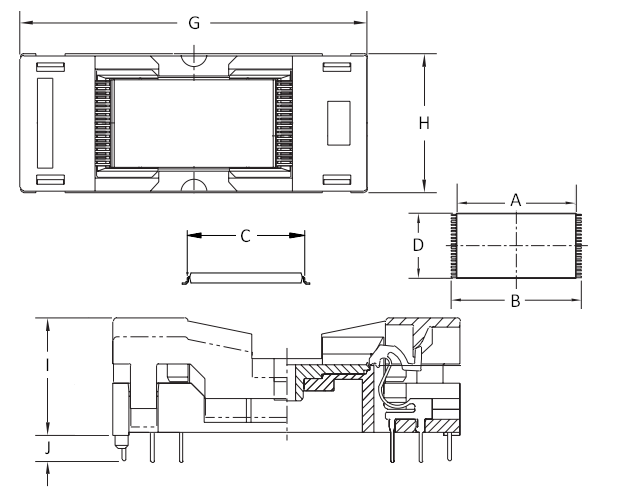

| IC dimensions | socket dimensions | pin length | |||
| A | B | C | D | G x H x I | J |
| 7.50 | 10.30 | - | 6.90 | 24.00 x 16.50 x 17.00 | 2.50 |
| |||||
