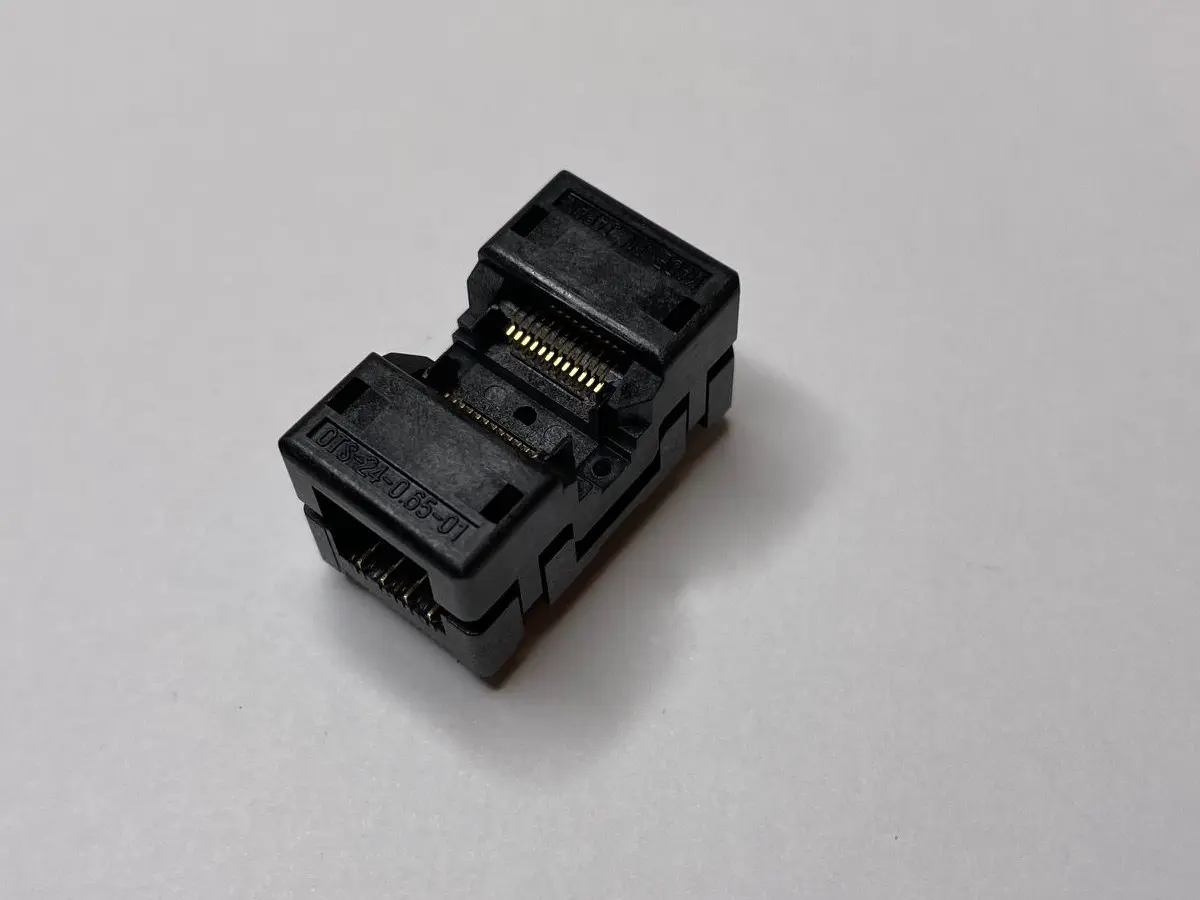

image of OTS-24-0.65-01

IC socket OTS-24-0.65-01

  • Suitable Packages: supports TSSOP24 packages
  • Socket Pitch: 0.65mm pitch
  • Number Of Pins: 24 pins
  • Socket Design: open-top
  • Durability: very durable burn-in socket
  • Manufacturer: Enplas
  • RoHS: RoHS Compliant
  • Mounting Type: through hole, solder-mounted on the PCB
  • Country Of Origin: Japan
  • Stock Availability: Large quantity in stock
  • Price: Send inquiry

Description:

OTS-24-0.65-01 is IC Test & Burn-in socket manufactured by Enplas, dedicated for 24-pin TSSOP package with 0.65mm pitch.
designed for SSOP and TSSOP packages with 24pins and package size 6.40x4.40mm
This is suitable solution for autoloading equipment / equipment operated by robotic handlers.
Socket drawing available upon request.

OTS-24-0.65-01 dimensions (mm):
IC dimensions socket dimensions pin length
A B C D G x H x I J
4.40 6.40 5.20 8.50 26.40 x 14.70 x 14.00 2.90
OTS-24-0.65-01 technical specification
