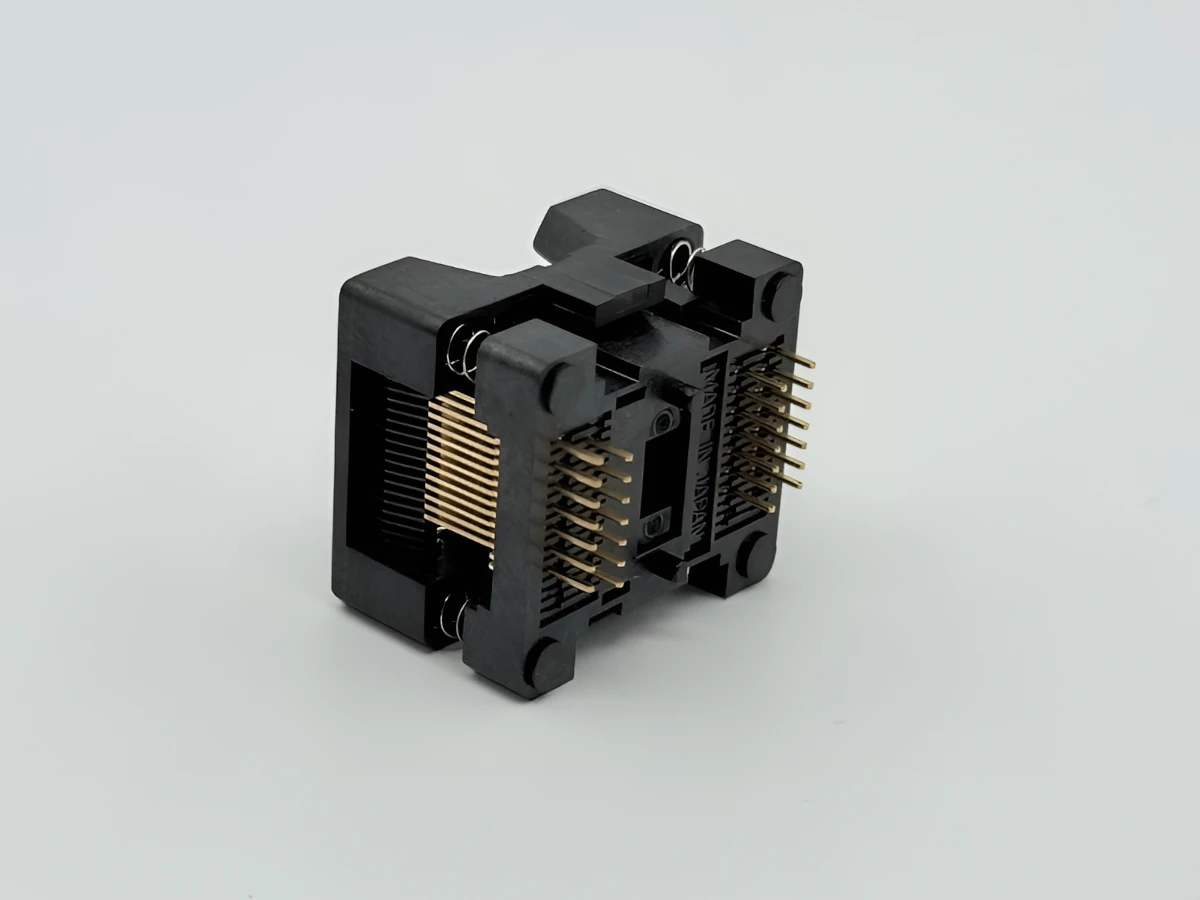

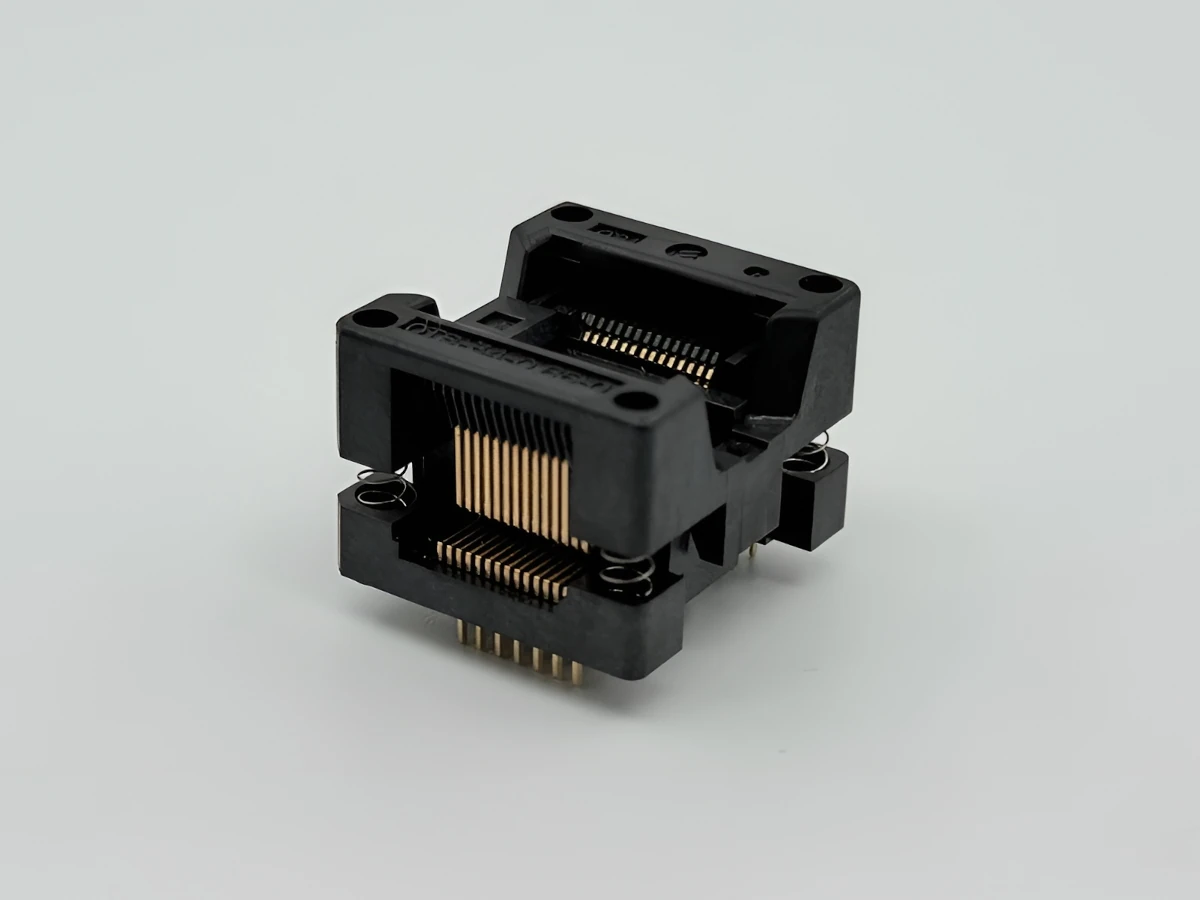

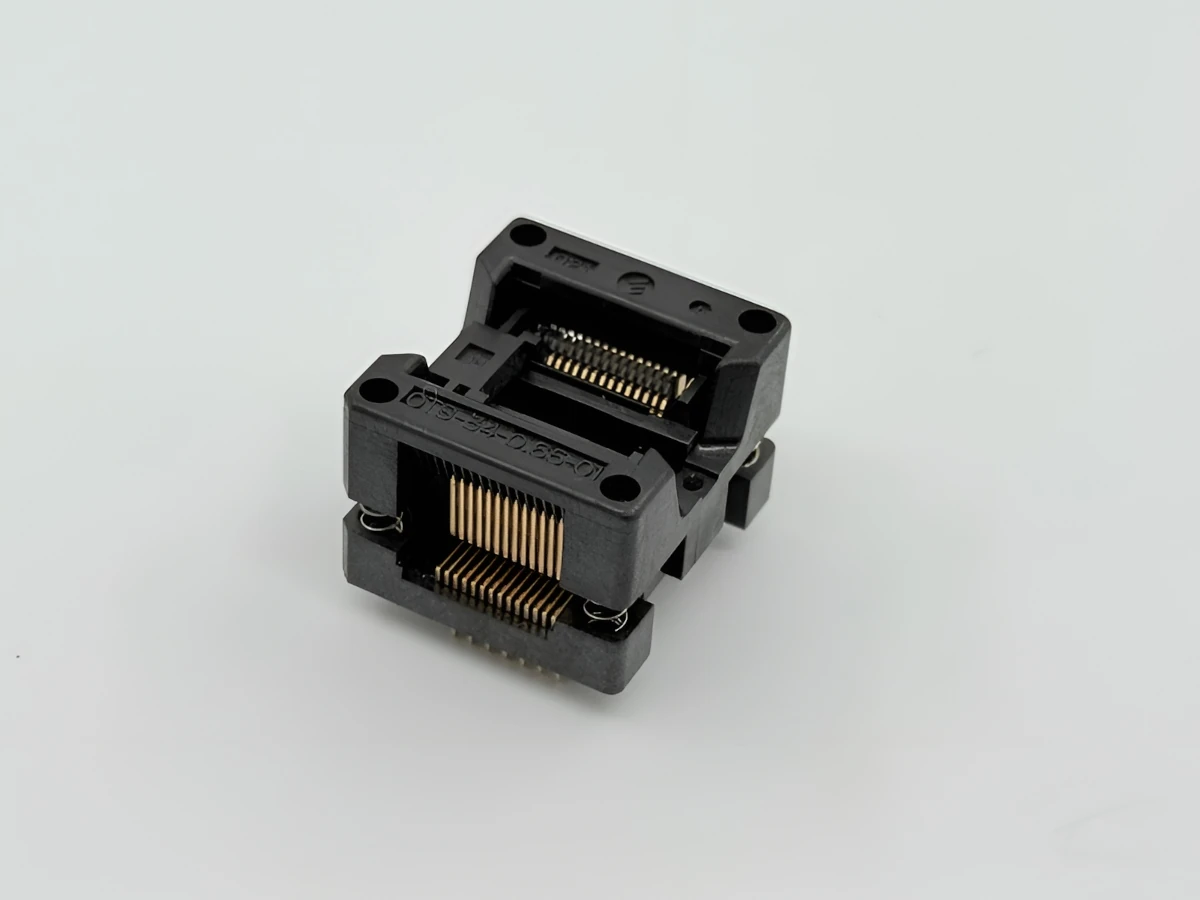

image of OTS-28(34)-0.65-01

IC socket OTS-28(34)-0.65-01

  • Suitable Packages: supports SSOP28 packages
  • Socket Pitch: 0.65mm pitch
  • Number Of Pins: 28 pins
  • Socket Design: open-top
  • Durability: very durable burn-in socket
  • Manufacturer: Enplas
  • RoHS: RoHS Compliant
  • Mounting Type: through hole, solder-mounted on the PCB
  • Country Of Origin: Japan
  • Stock Availability: Bulk quantities available
  • Price: Send inquiry

Description:

OTS-28(34)-0.65-01 is IC Test & Burn-in socket manufactured by Enplas, dedicated for 28-pin SSOP package with 0.65mm pitch. OTS-28(34)-0.65-01 is depopulated version of OTS-34-0.65-01

This is suitable solution for autoloading equipment / equipment operated by robotic handlers.
Socket drawing available upon request.
Suitable receptacle for IC socket OTS-28(34)-0.65-01 is R-OTS-28(34)-0.65-01.

Ask about OTS-28(34)-0.65-01
Product rating:
Product rating:
Ask about OTS-28(34)-0.65-01
OTS-28(34)-0.65-01 dimensions (mm):
IC dimensions socket dimensions pin length
A B C D G x H x I J
5.30 7.80 6.40 10.64 23.00 x 21.00 x 17.00 2.50
OTS-28(34)-0.65-01 technical specification
