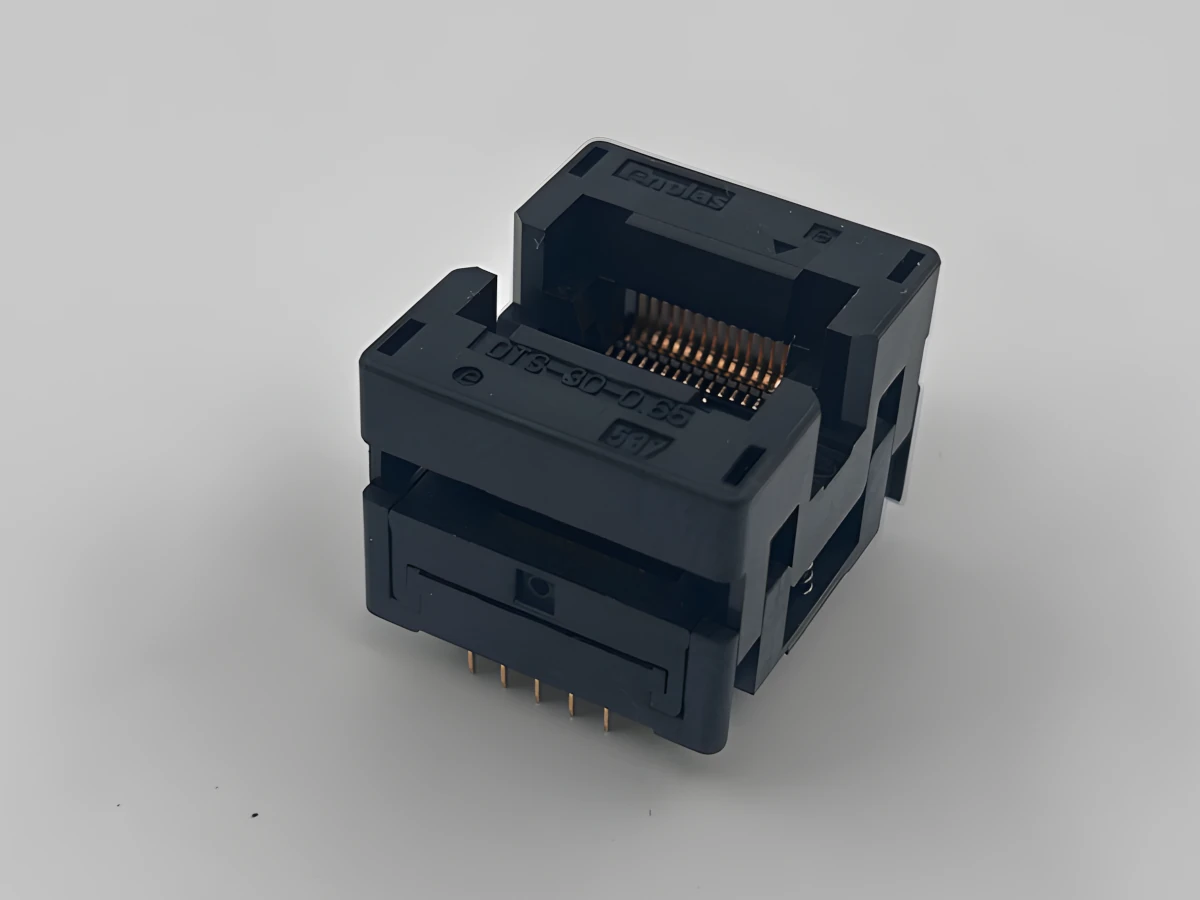

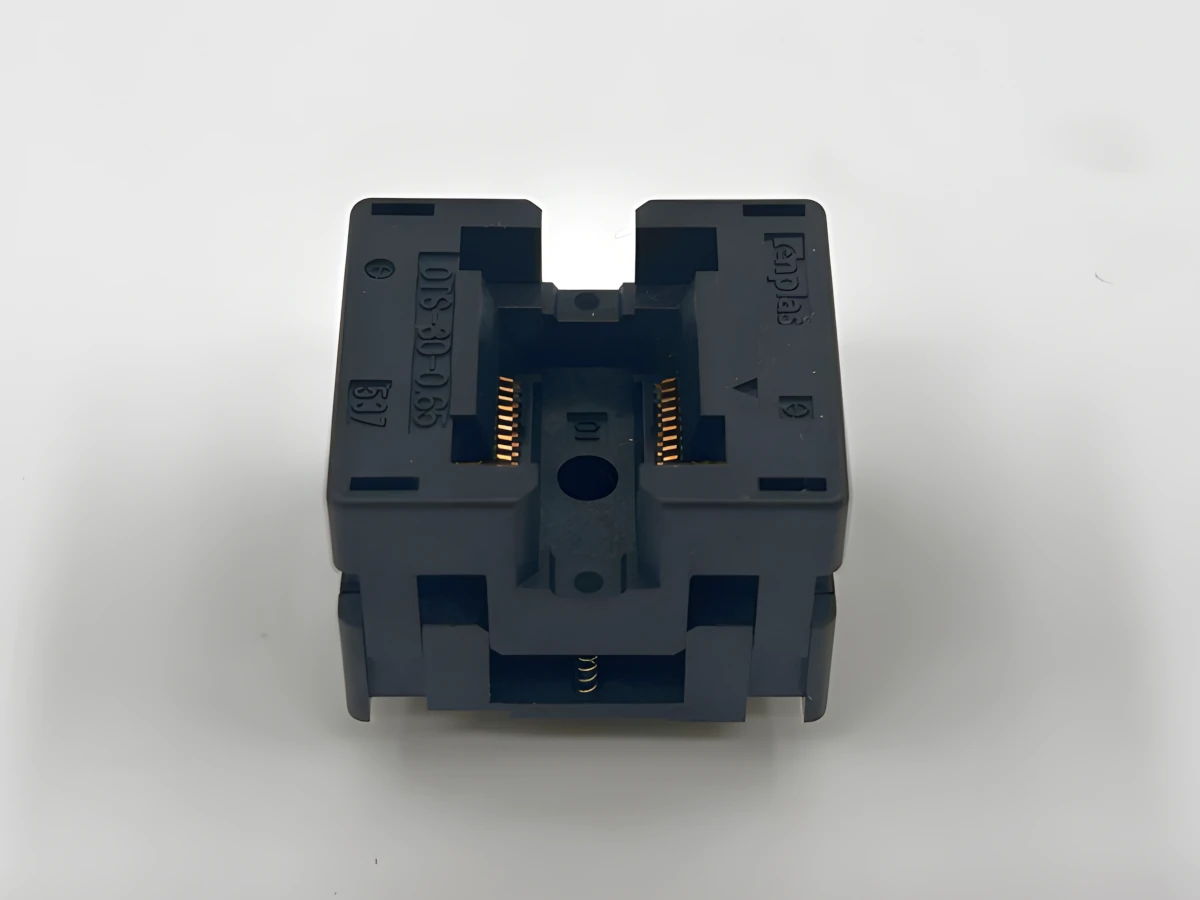

image of OTS-30-0.65-01

IC socket OTS-30-0.65-01

  • Suitable Packages: supports SSOP30 packages
  • Socket Pitch: 0.65mm pitch
  • Number Of Pins: 30 pins
  • Socket Design: open-top
  • Durability: very durable burn-in socket
  • Manufacturer: Enplas
  • RoHS: RoHS Compliant
  • Mounting Type: through hole, solder-mounted on the PCB
  • Country Of Origin: Japan
  • Stock Availability: In stock for quick delivery
  • Price: Send inquiry

Description:

OTS-30-0.65-01 is IC Test & Burn-in socket manufactured by Enplas, dedicated for 30-pin SSOP package with 0.65mm pitch.
This is suitable solution for autoloading equipment / equipment operated by robotic handlers.
Socket drawing available upon request.

Ask about OTS-30-0.65-01
Product rating:
Product rating:
Ask about OTS-30-0.65-01
OTS-30-0.65-01 dimensions (mm):
IC dimensions socket dimensions pin length
A B C D G x H x I J
8.10 6.10 7.10 9.90 23.00 x 20.00 x 15.70 2.80
OTS-30-0.65-01 technical specification
