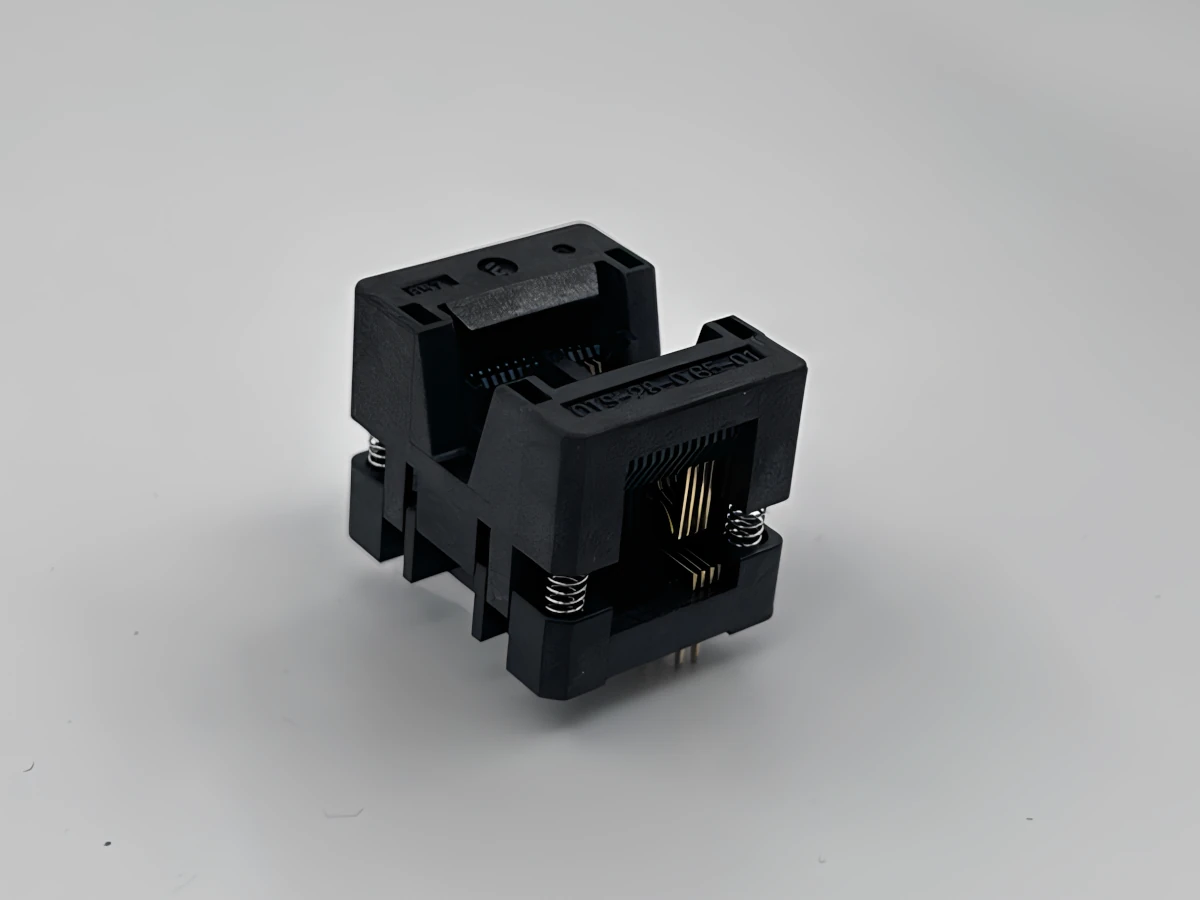

IC socket OTS-8(28)-0.65-01
- Suitable Packages: supports TSSOP8 packages
- Socket Pitch: 0.65mm pitch
- Number Of Pins: 8 pins
- Socket Design: open-top
- Durability: very durable burn-in socket
- Manufacturer: Enplas
- RoHS: RoHS Compliant
- Mounting Type: through hole, solder-mounted on the PCB
- Country Of Origin: Japan
- Stock Availability: In stock for quick delivery
- Price: Send inquiry
Description:
OTS-8(28)-0.65-01 is IC Test & Burn-in socket manufactured by Enplas, dedicated for 8-pin TSSOP package with 0.65mm pitch. OTS-8(28)-0.65-01 is depopulated version of OTS-(2)-0.65-01This is suitable solution for autoloading equipment / equipment operated by robotic handlers.
Socket drawing available upon request.
| IC dimensions | socket dimensions | pin length | |||
| A | B | C | D | G x H x I | J |
| 4.40 | 6.40 | 5.20 | 3.00 | 20.20 x 17.60 x 17.50 | 3.00 |
| |||||
Possible alternatives:
Test sockets with similar properties are listed below (1):
OTS-8(24)-0.65-01 (Enplas)
Please note that the test sockets listed as possible alternatives to the Enplas test socket OTS-8(28)-0.65-01 are similar in the way they accept IC packages with the same dimensions. However, they may differ in tolerances, operating methods, mounting to the PCB, PCB footprint, etc. Always refer to the technical datasheet to ensure compatibility with your application
